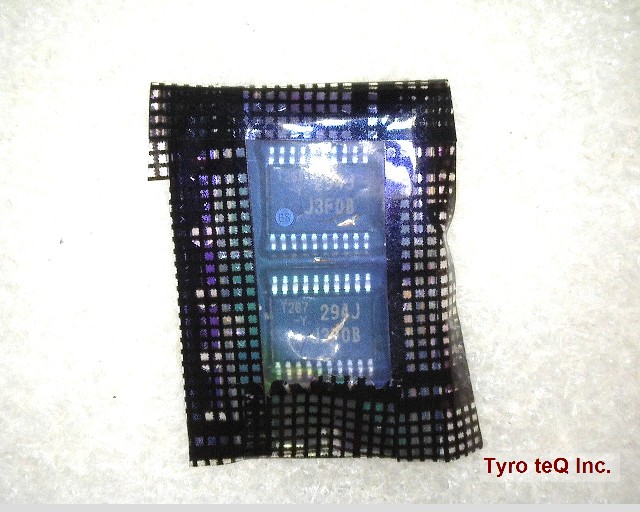

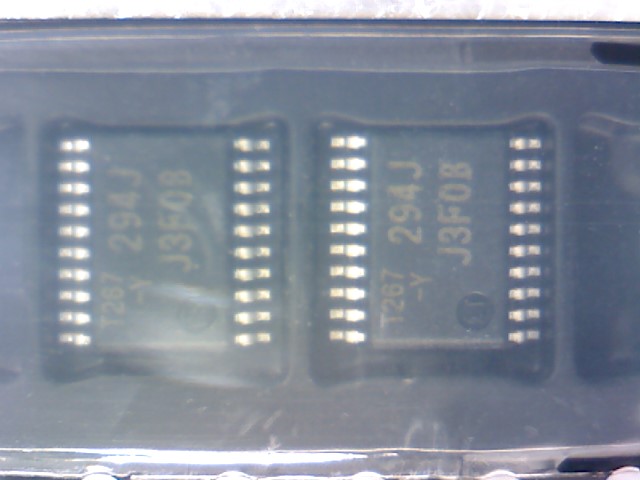

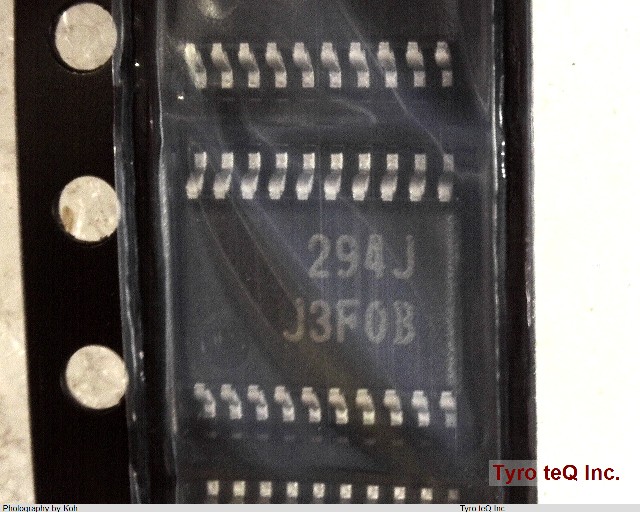

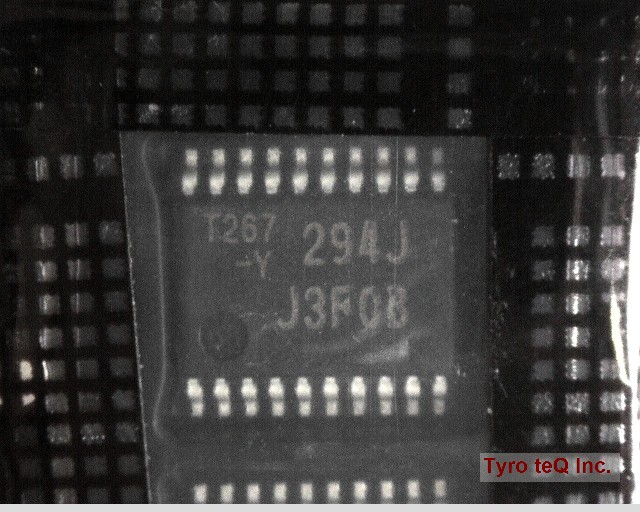

R5F21294JSP データシート

Name: R5F21294JSP
Brand: RENESAS
SKU: 280407958-0000-0000-0000

R5F21294JSP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F21294JSP の詳細情報

型番	R5F21294JSP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.2V SUPPLY AT 5 MHZ
Address Bus Width	0
Bit Size	16
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDSO-G20
Length	6.5 mm
Moisture Sensitivity Level	3
Number of I/O Lines	16
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2.5/5 V
Qualification Status	Not Qualified
RAM (bytes)	1024
ROM (words)	16384
ROM Programmability	FLASH
Seated Height-Max	1.45 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	17 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
