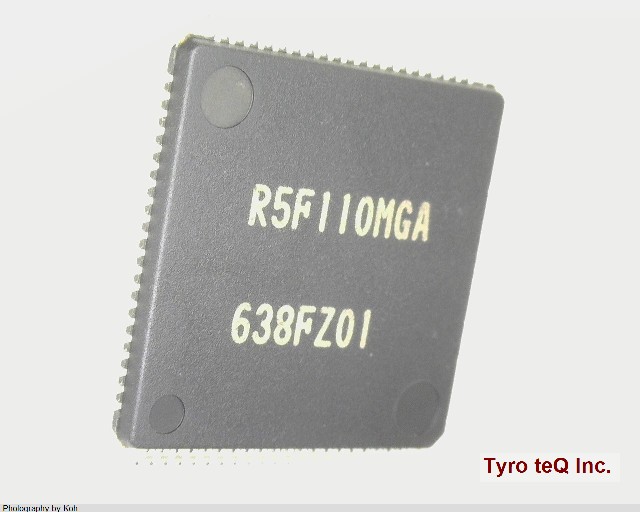

R5F110MGAFB データシート

Name: R5F110MGAFB
Brand: RENESAS
SKU: 280406839-0000-0000-0000

R5F110MGAFB - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F110MGAFB の詳細情報

型番	R5F110MGAFB
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	9-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	16
CPU Family	RL78
Clock Frequency-Max	20 MHz
Connectivity	CSI(4), I2C(4), UART(4)
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	NO
Data EEPROM Size	8192
External Data Bus Width	0
Length	12 mm
Moisture Sensitivity Level	3
Number of I/O Lines	59
Number of Terminals	80
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	COMPARATOR, POR, RTC, TIMER(12), WDT
RAM (bytes)	12288
ROM (words)	131072
ROM Programmability	FLASH
Speed	24 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.4 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	12 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
