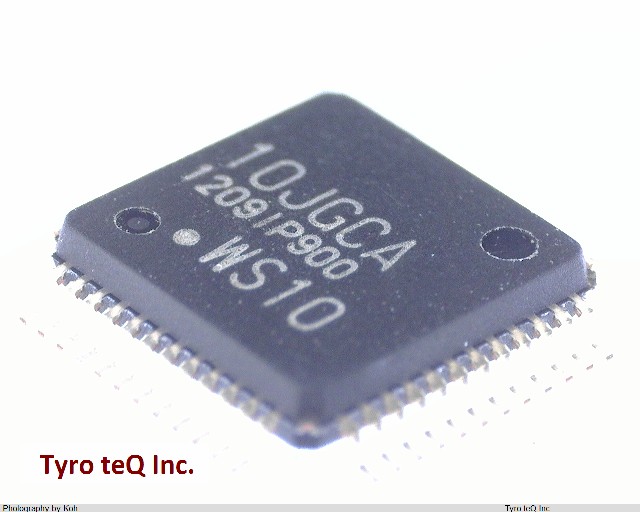

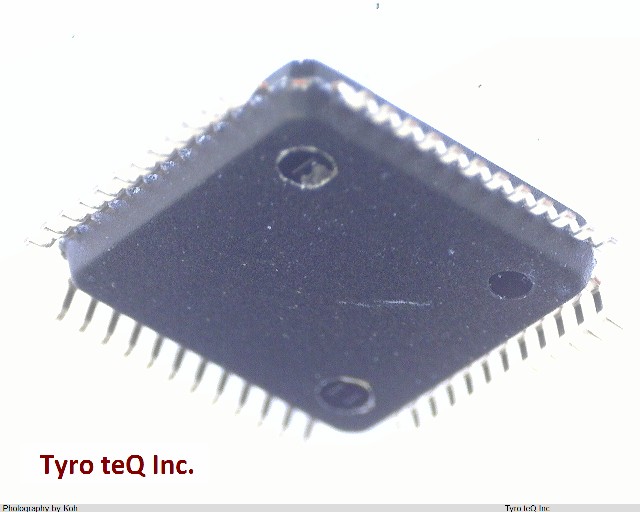

R5F10JGCAFB データシート

Name: R5F10JGCAFB
Brand: RENESAS
SKU: 280406690-0000-0000-0000

R5F10JGCAFB - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F10JGCAFB の詳細情報

型番	R5F10JGCAFB
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 2.4 V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width	0
Bit Size	16
Boundary Scan	NO
CPU Family	R5F10
Clock Frequency-Max	20 MHz
Connectivity	CSI(2), I2C(2), UART, USB(2)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	2K
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G48
Length	7 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	2
Number of External Interrupts	9
Number of I/O Lines	28
Number of Serial I/Os	1
Number of Terminals	48
Number of Timers	5
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP48,.35SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(2), POR, RTC, TIMER(5), WDT
RAM (bytes)	5632
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	1.6 mm
Speed	24 rpm
Supply Current-Max	5.9 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
