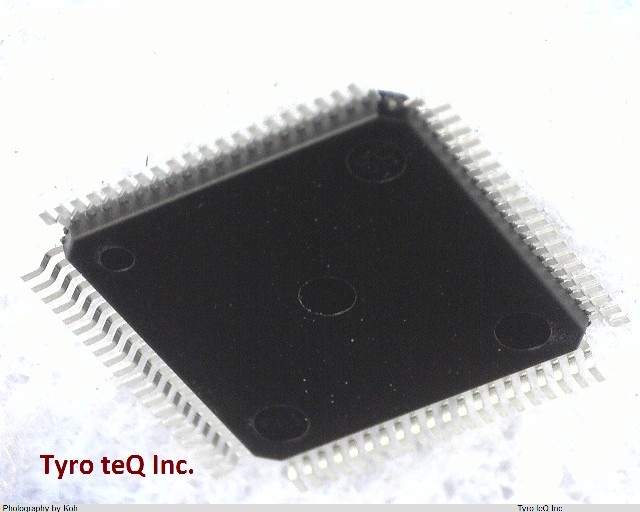

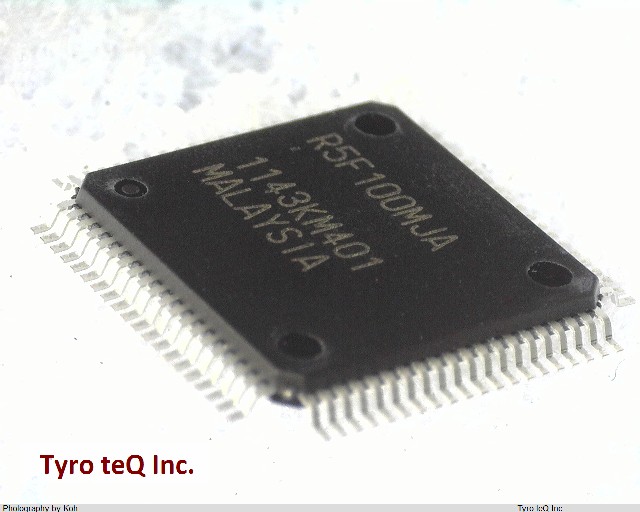

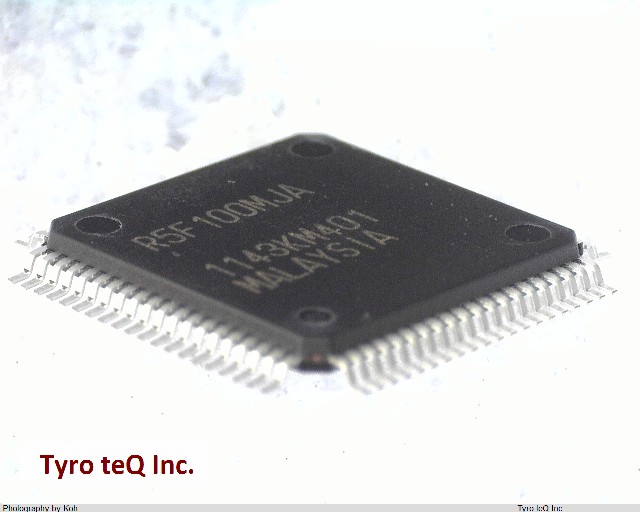

R5F100MJAFA#V0 データシート

Name: R5F100MJAFA#V0
Brand: RENESAS
SKU: 280379805-0000-0000-0000

R5F100MJAFA#V0 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F100MJAFA#V0 の詳細情報

型番	R5F100MJAFA#V0
メーカー	RENESAS
データシート
A/D Converters	17-Ch 10-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY @ LOW-VOLTAGE MAIN MODE
Address Bus Width	0
Bit Size	16
Clock Frequency-Max	20 MHz
Connectivity	CSI(8), I2C(10, LIN, UART(4)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	8K
External Data Bus Width	0
JESD-30 Code	S-PQFP-G80
Length	14 mm
Number of I/O Lines	74
Number of Terminals	80
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	BUZZER(2), DMA(4), POR, PWM, RTC, TIMER(13), WDT
RAM (bytes)	20480
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	32 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
