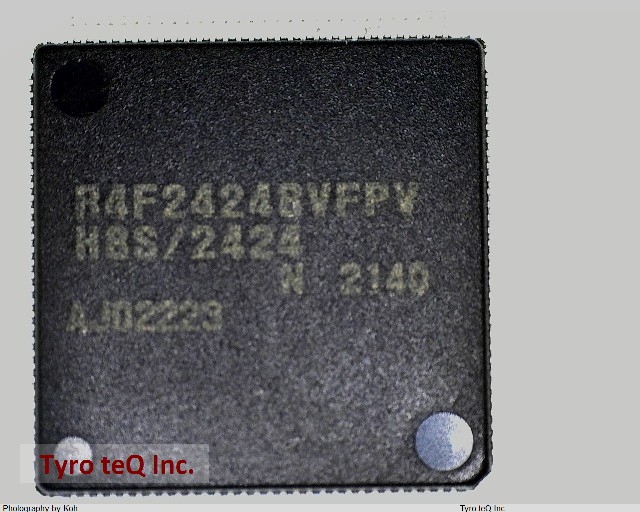

R4F24248NVFPV データシート

Name: R4F24248NVFPV
Brand: RENESAS
SKU: 280384636-0000-0000-0000

R4F24248NVFPV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R4F24248NVFPV の詳細情報

型番	R4F24248NVFPV
メーカー	RENESAS
データシート
A/D Converters	10-Ch 10-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	16
Clock Frequency-Max	20 MHz
Connectivity	I2C(4), SCI(5), SSU
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	8K
External Data Bus Width	16
JESD-30 Code	S-PQFP-G120
Length	14 mm
Number of I/O Lines	94
Number of Terminals	120
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(4), POR, PPG, PWM, TIMER(14), WDT
RAM (bytes)	49152
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	33 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
