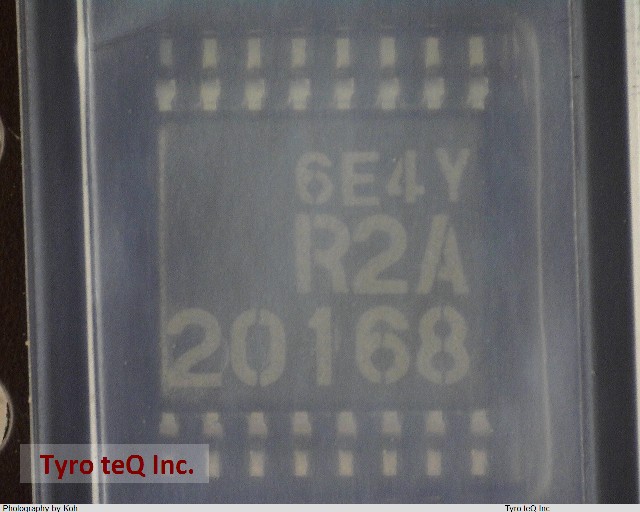

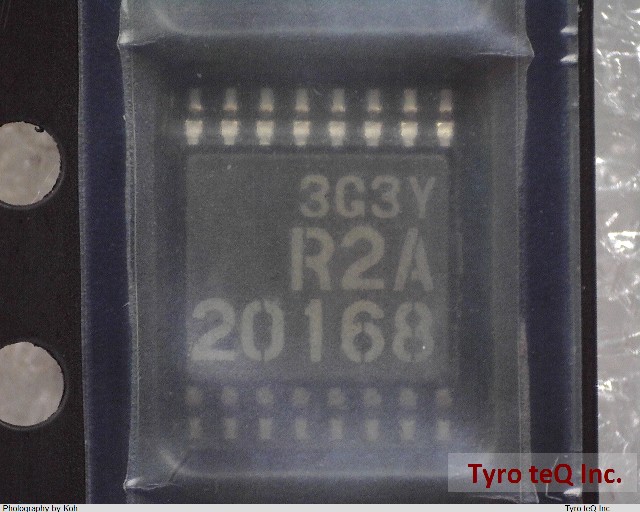

R2A20168SA#W5 データシート

Name: R2A20168SA#W5
Brand: RENESAS
SKU: 280414637-0000-0000-0000

R2A20168SA#W5 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R2A20168SA#W5 の詳細情報

型番	R2A20168SA#W5
メーカー	RENESAS
データシート
Analog Output Voltage-Max	5.4 V
Analog Output Voltage-Min	0.1 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	SERIAL
JESD-30 Code	R-PDSO-G16
Length	5 mm
Linearity Error-Max (EL)	0.3906 %
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Settling Time-Max	150 us
Sub Category	Other Converters
Supply Current-Max	1.2 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
