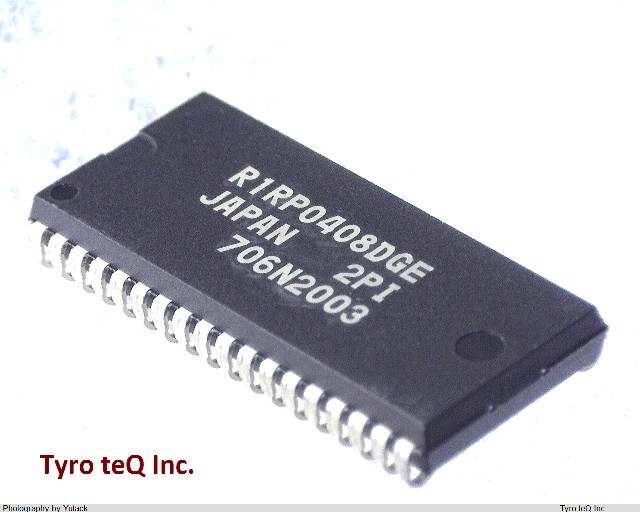

R1RP0408DGE-2PI データシート

Name: R1RP0408DGE-2PI
Brand: RENESAS
SKU: 280045584-0000-0000-0000

R1RP0408DGE-2PI - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R1RP0408DGE-2PI の詳細情報

型番	R1RP0408DGE-2PI
メーカー	RENESAS
カテゴリ	SRAM
データシート
Access Time-Max	12 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-J36
Length	23.49 mm
Memory Density	4194304 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	36
Number of Words	524288 words
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	512KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOJ
Package Equivalence Code	SOJ36,.44
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	3.55 mm
Standby Current-Max	0.005 Amp
Standby Voltage-Min	4.5 V
Sub Category	SRAMs
Supply Current-Max	0.13 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	10.16 mm
アクセス時間(ns)	12
ステータス	量産中
パッケージコード	PRSJ0036DA-A(36P0K)
メモリ容量(Mbit)	4
備考	-
動作周囲温度(°C)	-40 to 85
語構成(Kword)	512
語構成(bit)	x 8
電源電圧(V)	4.5 to 5.5
