R1LV1616HSA-5SI#B0 データシート

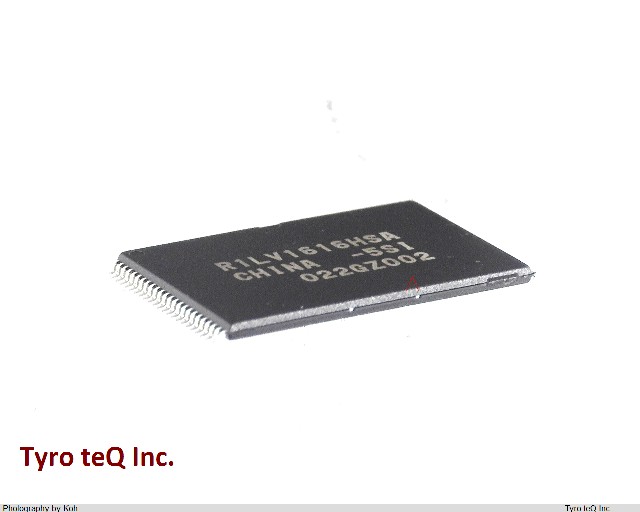

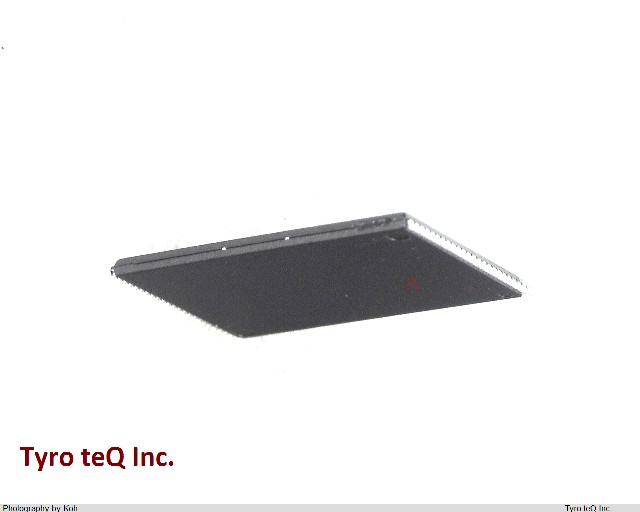

Name: R1LV1616HSA-5SI#B0
Brand: RENESAS
SKU: 280400686-0000-0000-0000

R1LV1616HSA-5SI#B0 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R1LV1616HSA-5SI#B0 の詳細情報

型番	R1LV1616HSA-5SI#B0
メーカー	RENESAS
データシート
Access Time-Max	55 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G48
Memory Density	16777216 bit
Memory IC Type	STANDARD SRAM
Memory Width	16
Moisture Sensitivity Level	2
Number of Terminals	48
Number of Words	1048576 words
Number of Words Code	1M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	1MX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP48,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Parallel/Serial	PARALLEL
Power Supplies	3/3.3 V
Qualification Status	Not Qualified
Standby Current-Max	8.0E-6 Amp
Standby Voltage-Min	1.5 V
Sub Category	SRAMs
Supply Current-Max	0.05 mA
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
