R1LV0408DSP-7LI データシート

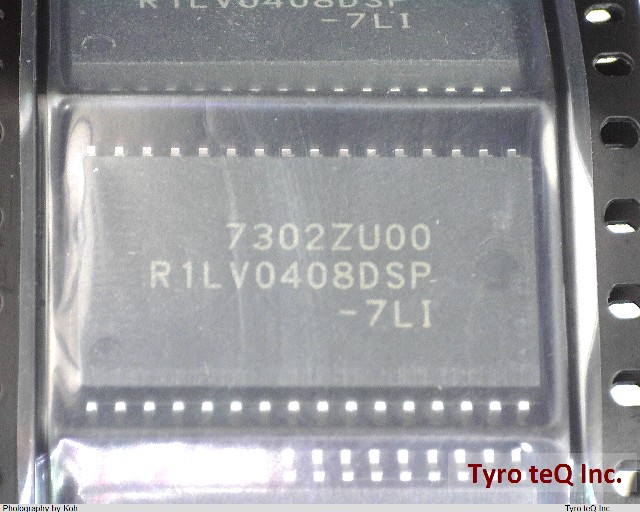

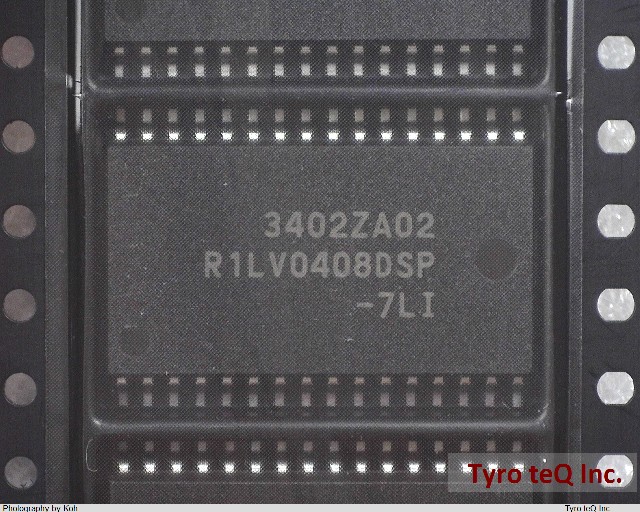

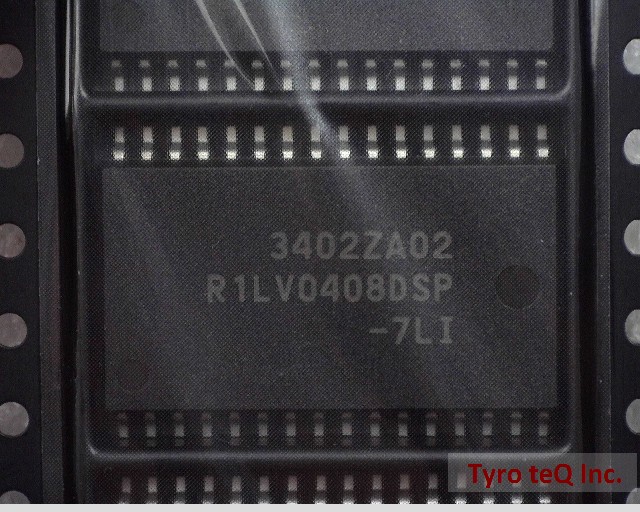

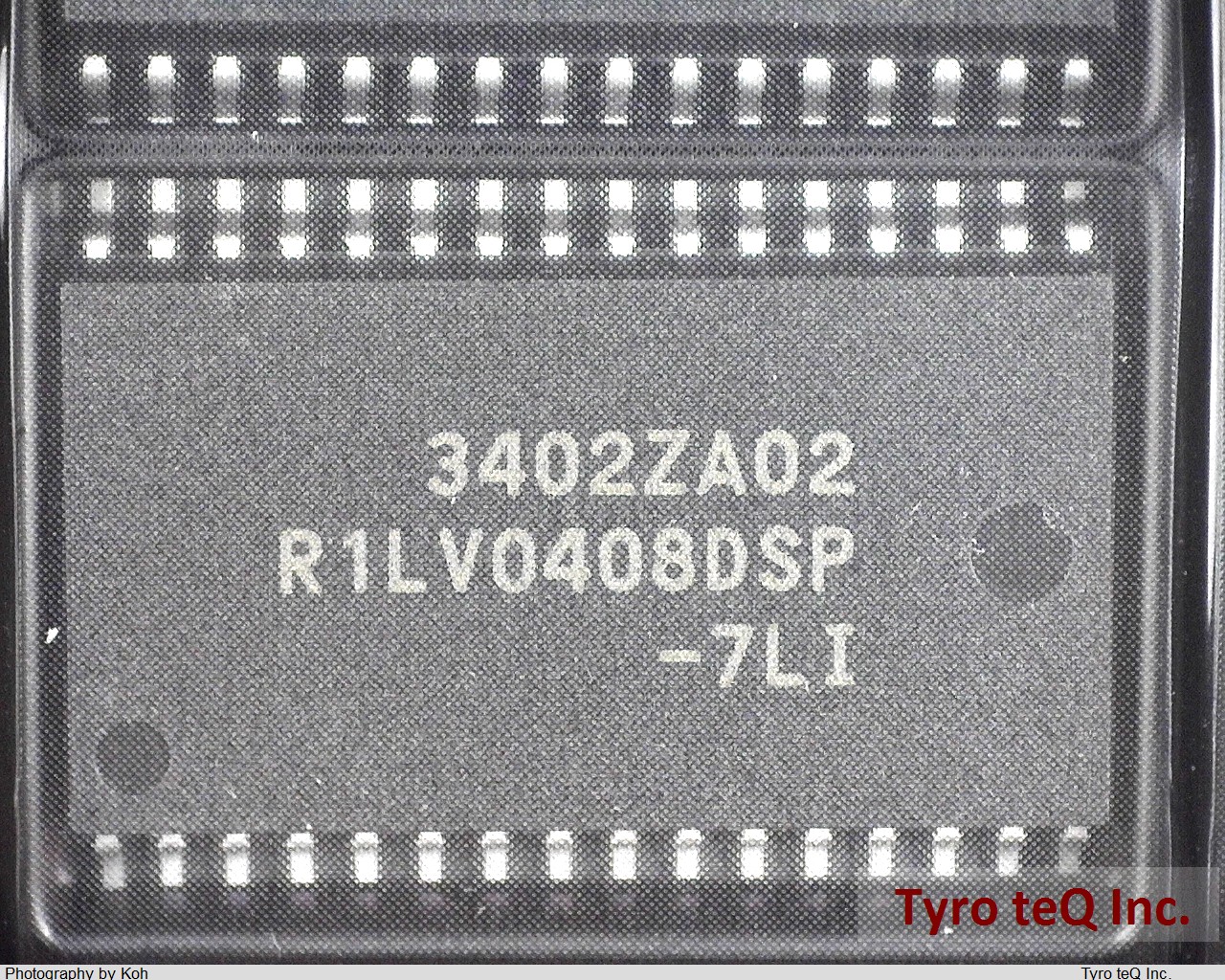

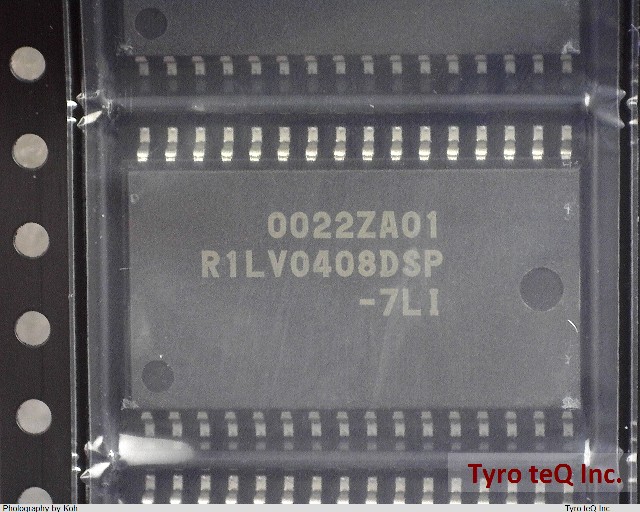

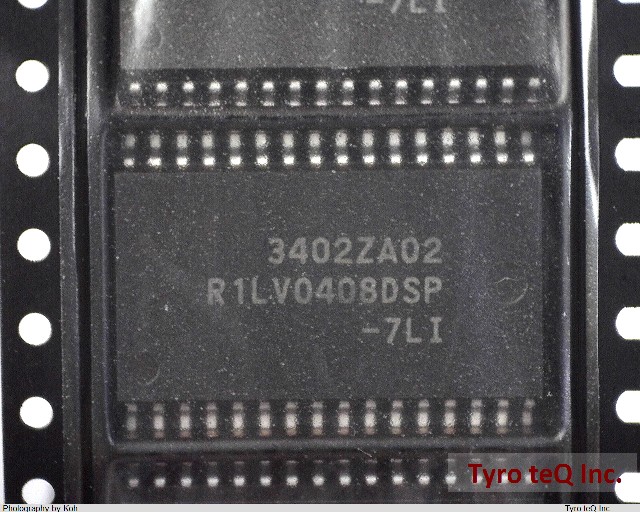

Name: R1LV0408DSP-7LI
Brand: RENESAS
SKU: 280222801-0000-0000-0000

R1LV0408DSP-7LI - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R1LV0408DSP-7LI の詳細情報

型番	R1LV0408DSP-7LI
メーカー	RENESAS
データシート
Access Time-Max	70 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G32
Length	20.75 mm
Memory Density	4194304 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Number of Functions	1
Number of Terminals	32
Number of Words	524288 words
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	512KX8
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP32,.56
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/3.3 V
Qualification Status	Not Qualified
Seated Height-Max	3.05 mm
Standby Current-Max	0.0003 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	11.4 mm
