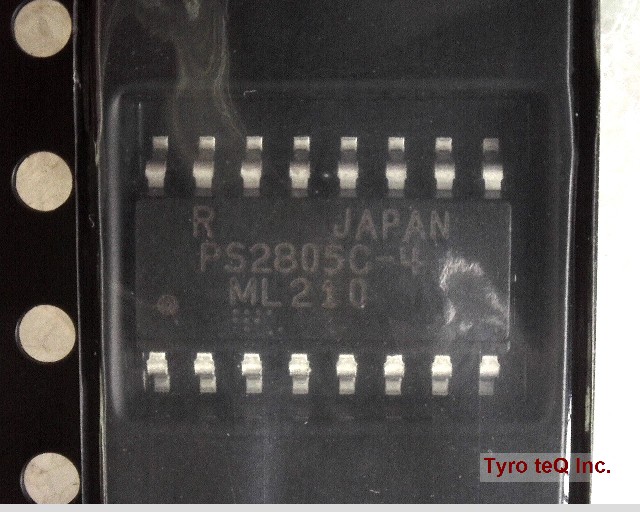

PS2805C-4 データシート

Name: PS2805C-4
Brand: RENESAS
SKU: 260225890-0000-0000-0000

PS2805C-4 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

PS2805C-4 の詳細情報

型番	PS2805C-4
メーカー	RENESAS
カテゴリ	フォト-光半導体
データシート
+IF(mA)	30
-IF(mA)	-30
Additional Feature	UL APPROVED
BV(kVr.m.s)	2.5
CTR(%)max.	400
CTR(%)min.	50
CTRRank	N
Coll-emtr Bkdn Voltage-Min	80 V
Configuration	SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min	50 %
Current Transfer Ratio-Nom	50 %
Dark Current-Max	100 nA
Forward Current-Max	0.03 A
Forward Voltage-Max	1.4 V
Function	Single Tr.(AC Input), Pin pitch :1.27 mm, VCEO=80V
G(V/V)max.	-
G(V/V)min.	-
IFHL(mA)max.	-
IFLH(mA)max.	-
IFatCTR(mA)	5
IO(mA)	-
IOL/IOH(A)peak	-
Ic(mA)	30
In/OutType	AC Input (Single Tr.)
Isolation Voltage-Max	2500 V
JESD-609 Code	e0
Mounting Feature	SURFACE MOUNT
NL(%)max.	-
NL(LSB)max.	-
Number of Elements	1
On-State Current-Max	0.03 A
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-55 Cel
Optoelectronic Device Type	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Packing Method	TAPE
Power Dissipation-Max	0.48 W
RLatton,toff(kohm)	100
RLattpHL,tpLH(kohm)	-
RLattr,tf(ohm)	100
Resolution(bits)min.	-
Safetystandard	UL, VDE(option), CSA
Sub Category	Optocoupler - Transistor Outputs
Targetapplication	PLC, Hybrid IC, Power supply, OA, Measuring instrument, Modem, Communication devices
Terminal Finish	Matte Tin (Sn)
VCC(V)	-
VCC-VEE(V)max.	-
VCC-VEE(V)min.	-
VCEO[V]	80
VCEatCTR(V)	5
VDD(V)	-
VccatCTR(V)	-
VoatCTR(V)	-
fc(kHz)min.	-
fclk(MkHz)max.	-
fclk(MkHz)min.	-
tPHL(μs)max.	-
tPHL/tPLH	-
tPLH(μs)max.	-
tf(μs)typ.	7
toff(μs)typ.	7
ton(μs)typ.	10
tr(μs)typ.	5
ステータス	量産中
備考	-
