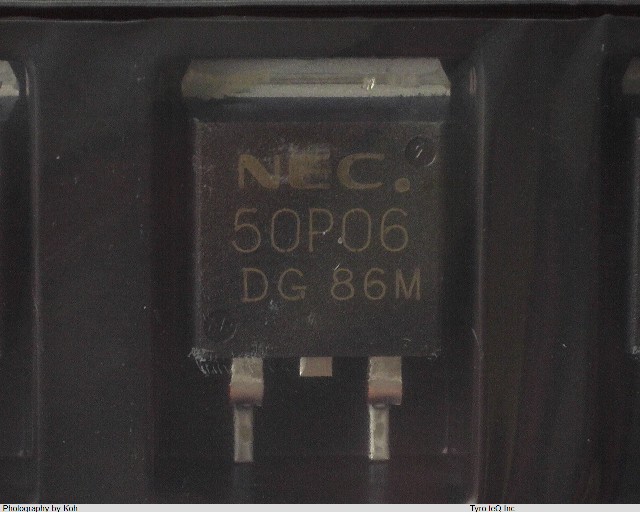

NP50P06KDG データシート

Name: NP50P06KDG
Brand: RENESAS
SKU: 240114574-0000-0000-0000

NP50P06KDG - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

NP50P06KDG の詳細情報

型番	NP50P06KDG
メーカー	RENESAS
カテゴリ	スイッチ-その他IC
データシート
Application	Automotive Use
Automotive	YES
Avalanche Energy Rating (Eas)	106 mJ
Case Connection	DRAIN
Ciss(pF)typ.	5000
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	50 A
Drain Current-Max (ID)	50 A
Drain-source On Resistance-Max	0.023 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
ID(A)	-50
JEDEC-95 Code	TO-263AB
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e0
MountingType	Surface Mount
Nch/Pch	Pch
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	175 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Pch(W)	90
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	90 W
Pulsed Drain Current-Max (IDM)	150 A
QG(nC)typ.	95
Qualification Status	Not Qualified
RDS(ON)(mohm)max.@10Vor8V	17
RDS(ON)(mohm)[email protected]	-
RDS(ON)(mohm)[email protected]	23
SeriesName	NP Series
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
VDSS(V)max.	-60
VGSS(V)	20
Vgs(off)(V)max.	-2.5
Webシミュレーション	-
シミュレーションデータ	SPICE
ステータス	量産中
パッケージコード	PRSS0004AK-A(P3J9-254-523)
構成	Single
構成[素子]	-
発注制約	-
