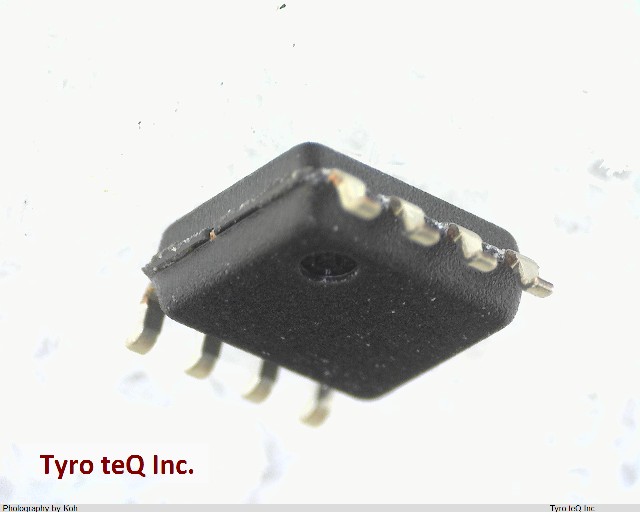

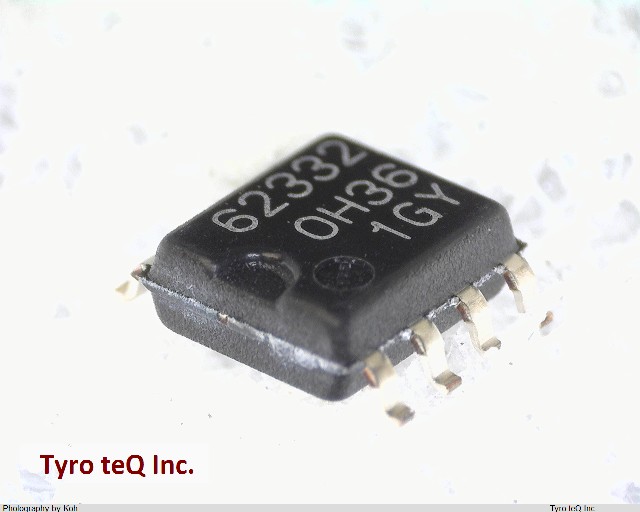

M62332FP データシート

Name: M62332FP
Brand: RENESAS
SKU: 230033737-0000-0000-0000

M62332FP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M62332FP の詳細情報

型番	M62332FP
メーカー	RENESAS
カテゴリ	コンバータ
データシート
Analog Output Voltage-Max	4.9 V
Analog Output Voltage-Min	0.1 V
BusFormat	I2C Bus
Channel(ch)	2
Converter Type	D/A CONVERTER
Function	I2C BUS R2R Type8bit 2ch D/A converterwith buffer
Icc(mA)max.	1
Input Bit Code	BINARY
Input Format	SERIAL
Io(A)	±1
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.85 mm
Linearity Error-Max (EL)	0.58 %
Number of Bits	8
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
OutputBufferAmp	Yes
OutputVoltage(V)	0.1 to (Vcc 0.1)
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Resolution(bit)	8
Seated Height-Max	1.9 mm
SettingTime(μs)	100
Sub Category	Other Converters
Supply Current-Max	2.5 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Vsy(V)max.	5
Vsy(V)min.	3
Width	4.4 mm
ステータス	In Mass Production
パッケージコード	PRSP0008DE-C(-)
