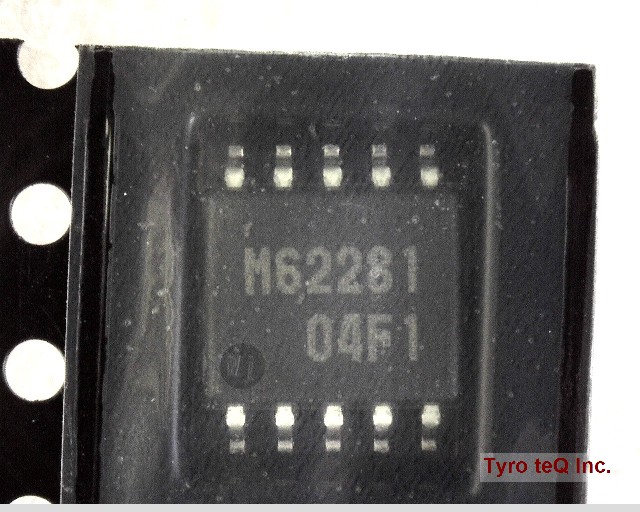

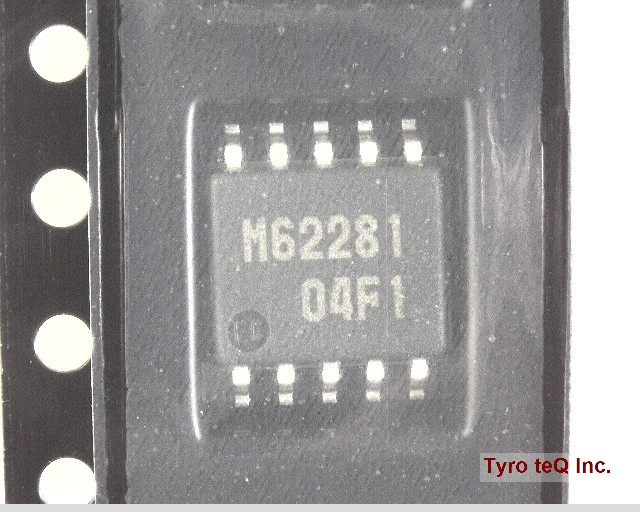

M62281FP データシート

Name: M62281FP
Brand: RENESAS
SKU: 230033721-0000-0000-0000

M62281FP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M62281FP の詳細情報

型番	M62281FP
メーカー	RENESAS
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	35 V
Input Voltage-Min	7.6 V
Input Voltage-Nom	14 V
JESD-30 Code	R-PDSO-G10
JESD-609 Code	e0
Length	6.8 mm
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	1 A
Output Voltage-Nom	2.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP10,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2.1 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	700 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.7 mm
