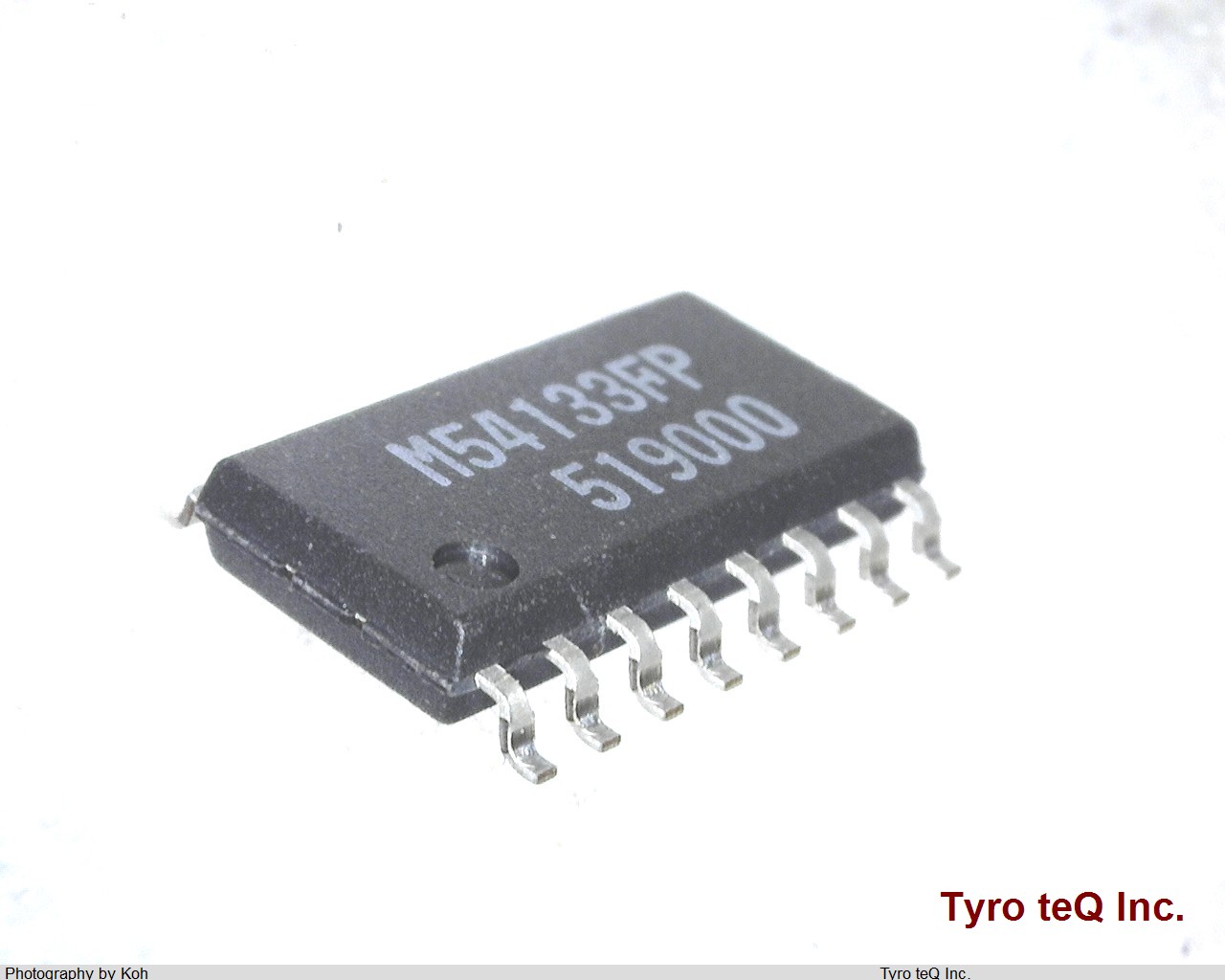

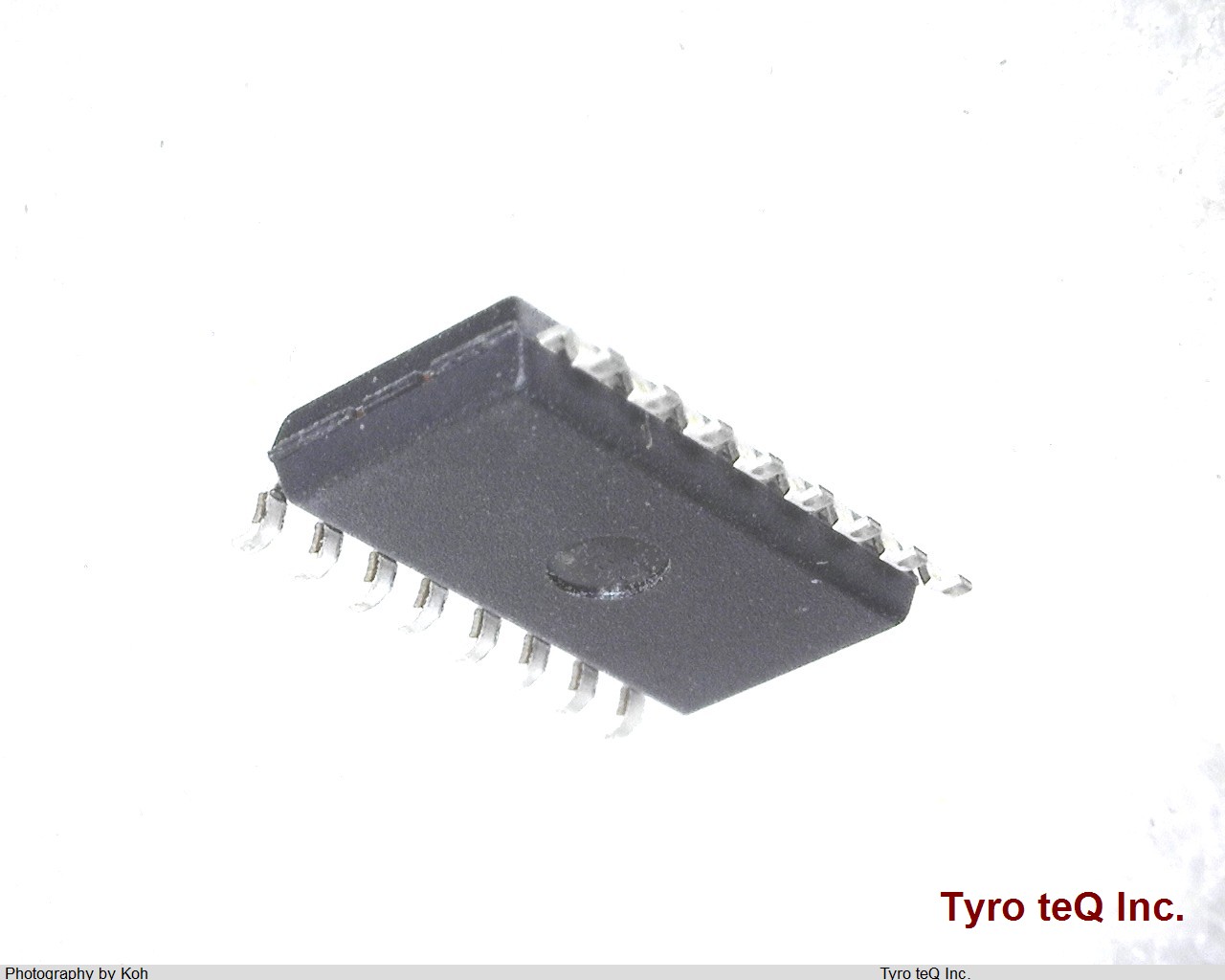

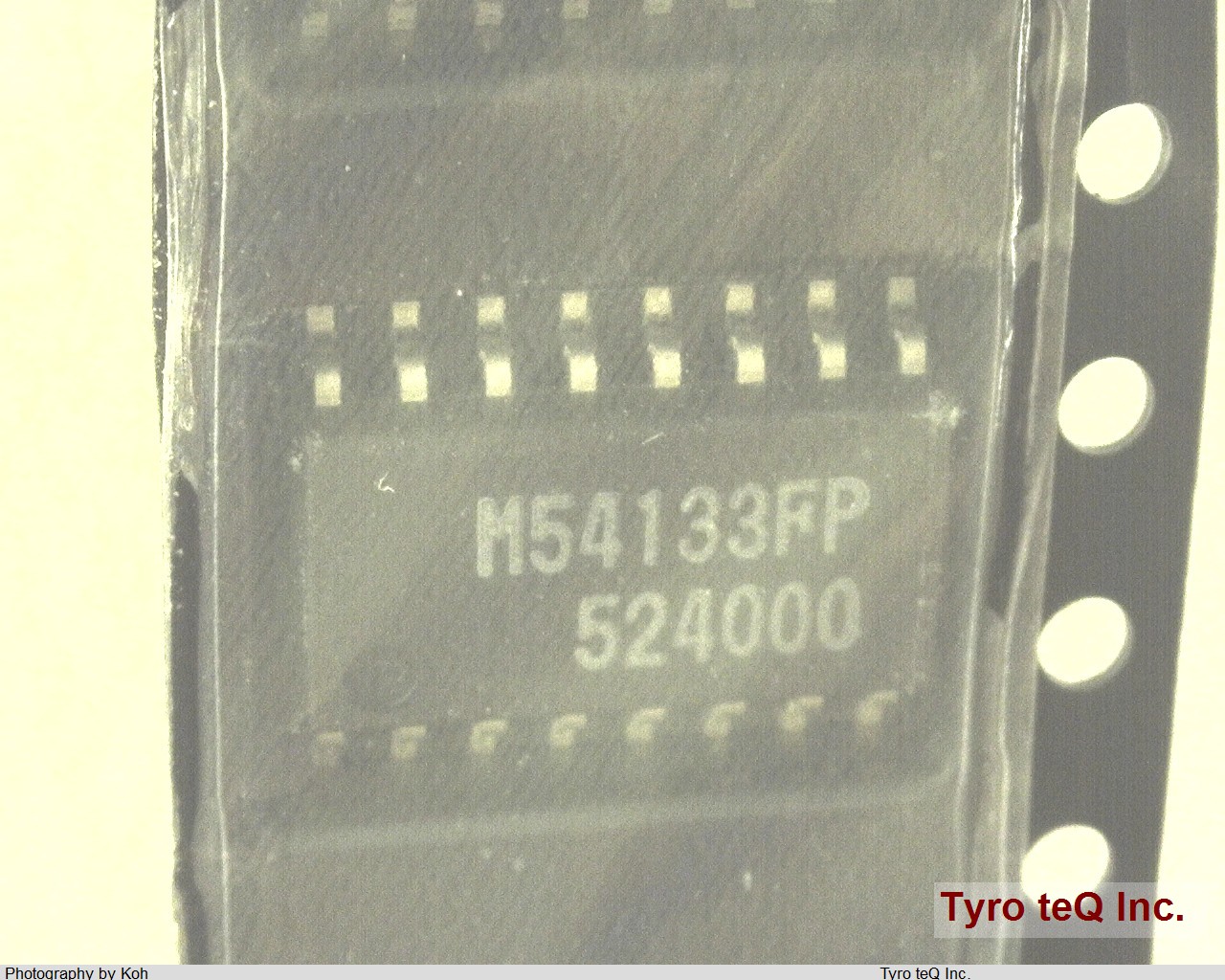

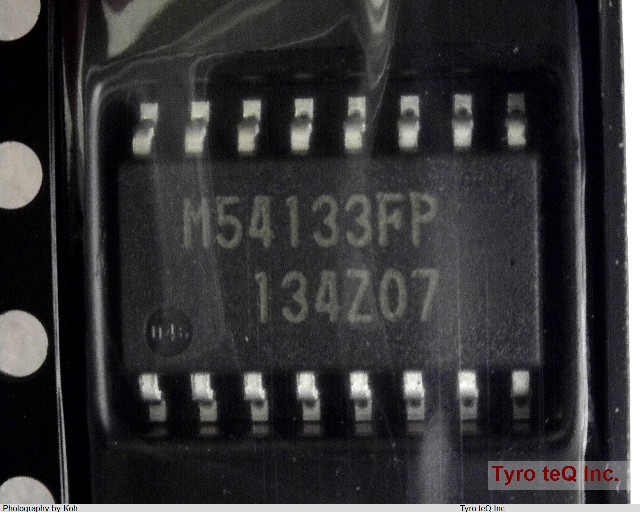

M54133FP データシート

Name: M54133FP
Brand: RENESAS
SKU: 230032362-0000-0000-0000

M54133FP - RENESAS の商品詳細ページです。

No Image

２営業日以内に回答いたします

M54133FP の詳細情報

型番	M54133FP
メーカー	RENESAS
データシート
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.1 mm
Number of Channels	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	9 V
Qualification Status	Not Qualified
Seated Height-Max	2.1 mm
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.74 mA
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	7 V
Supply Voltage-Nom (Vsup)	9 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.3 mm
