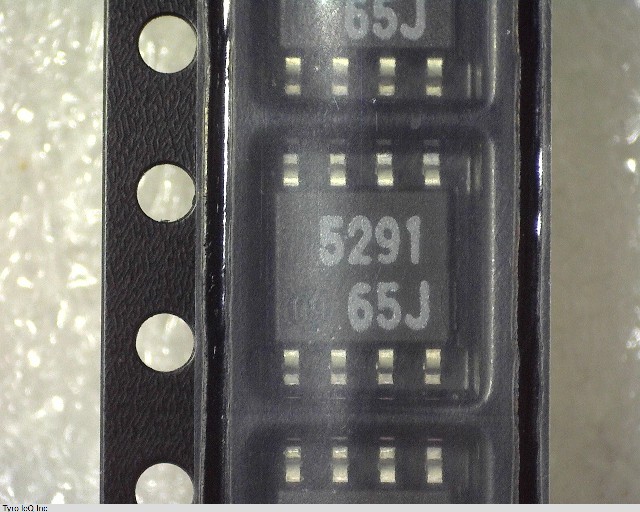

M5291FP データシート

Name: M5291FP
Brand: RENESAS
SKU: 230732074-0000-0000-0000

M5291FP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M5291FP の詳細情報

型番	M5291FP
メーカー	RENESAS
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	2.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	5 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	0.2 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	100 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	4.4 mm
