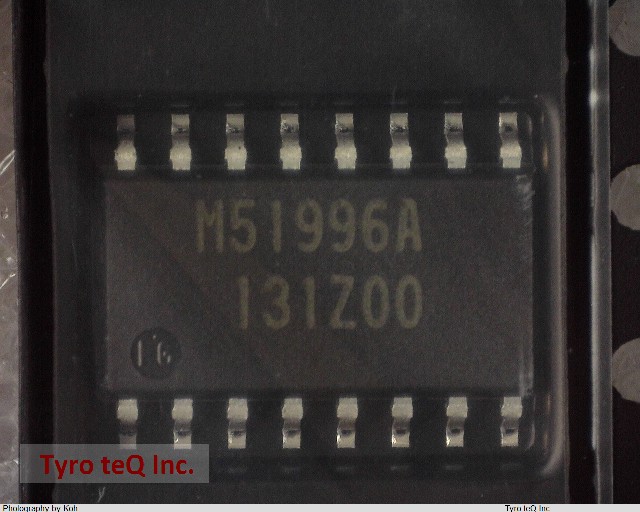

M51996AFP データシート

Name: M51996AFP
Brand: RENESAS
SKU: 230031772-0000-0000-0000

M51996AFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M51996AFP の詳細情報

型番	M51996AFP
メーカー	RENESAS
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	30 V
Input Voltage-Min	12 V
Input Voltage-Nom	18 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.1 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2.1 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	19 mA
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	500 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.3 mm
