M51943BSL データシート

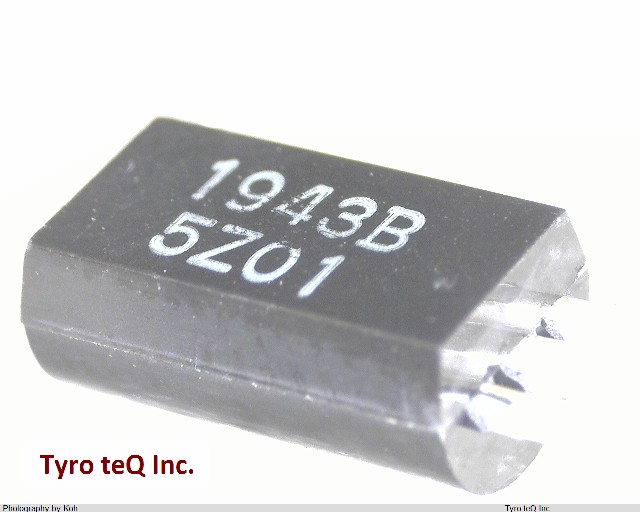

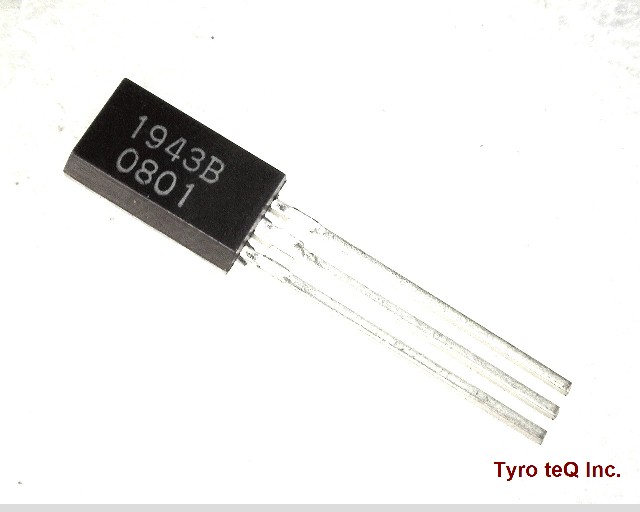

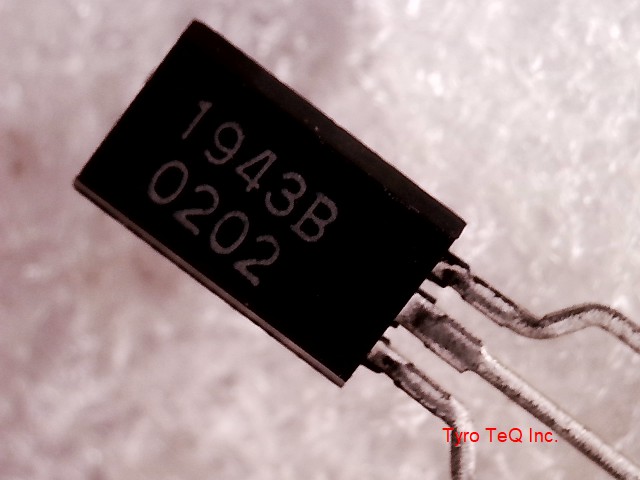

Name: M51943BSL
Brand: RENESAS
SKU: 230031677-0000-0000-0000

M51943BSL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M51943BSL の詳細情報

型番	M51943BSL
メーカー	RENESAS
データシート
Additional Feature	DETECTION THRESHOLD VOLTAGE IS 4.25V
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Number of Channels	1
Number of Functions	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Power Supplies	2/17 V
Qualification Status	Not Qualified
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.51 mA
Supply Voltage-Max (Vsup)	17 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	TIN COPPER
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Threshold Voltage-Nom	+4.25V V
