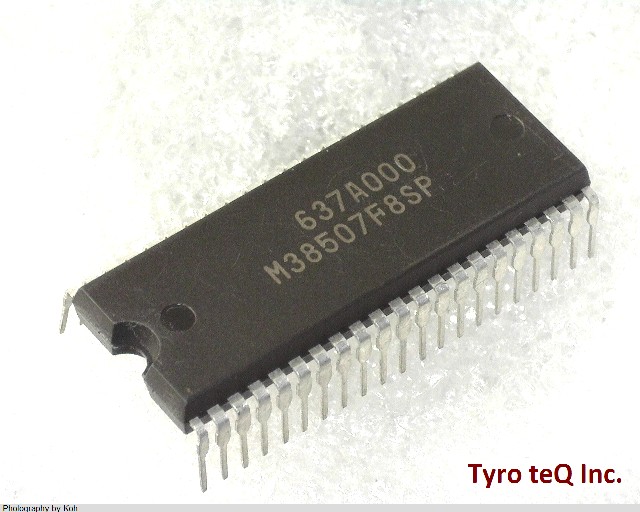

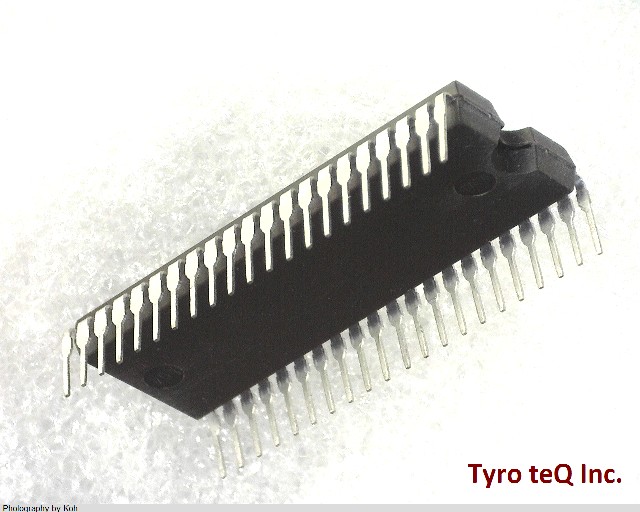

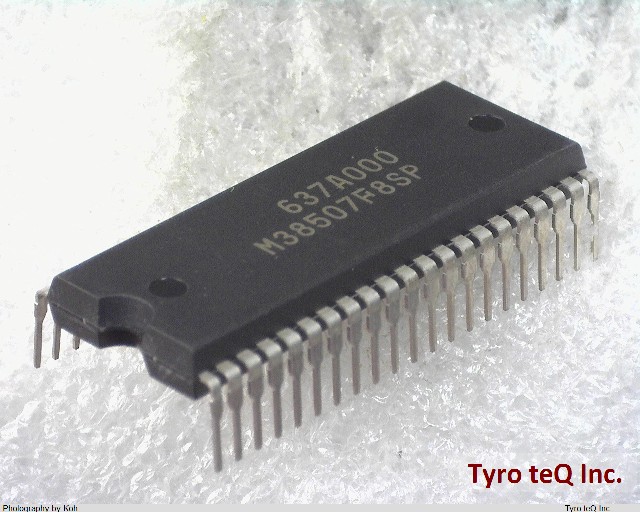

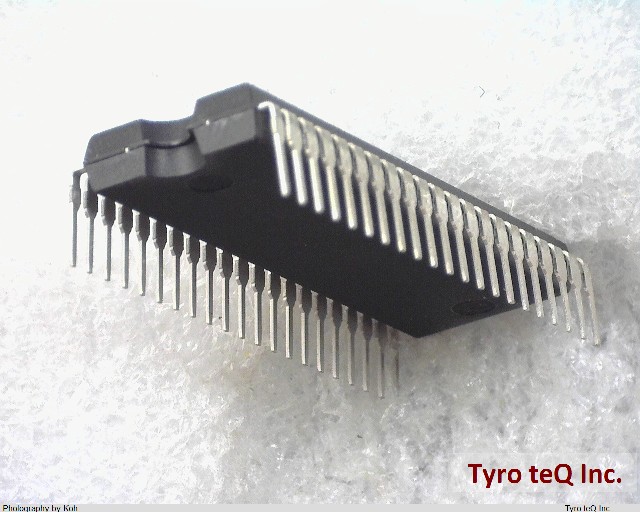

M38507F8SP データシート

Name: M38507F8SP
Brand: RENESAS
SKU: 230430928-0000-0000-0000

M38507F8SP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M38507F8SP の詳細情報

型番	M38507F8SP
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MIN SUPPLY @ 6MHZ
Address Bus Width	0
Bit Size	8
CPU Family	MELPS740
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDIP-T42
Length	36.7 mm
Number of I/O Lines	34
Number of Terminals	42
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP42,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	1024
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	5.5 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	13 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
