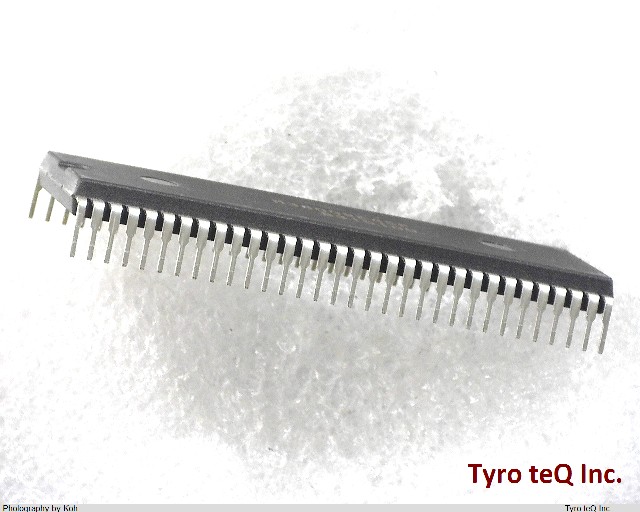

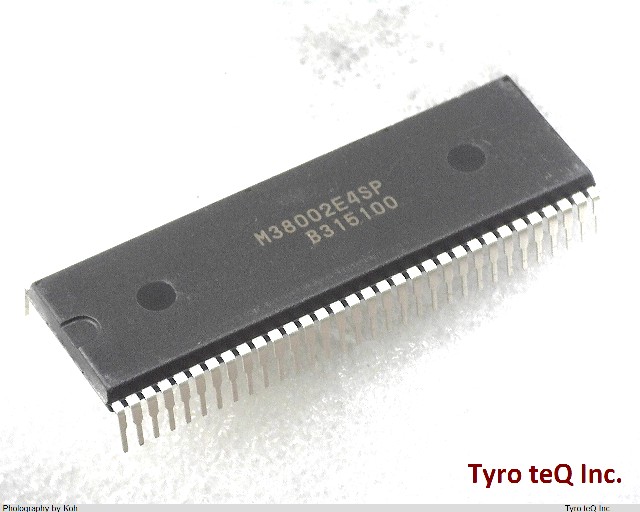

M38002E4SP データシート

Name: M38002E4SP
Brand: RENESAS
SKU: 230733901-0000-0000-0000

M38002E4SP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M38002E4SP の詳細情報

型番	M38002E4SP
メーカー	RENESAS
データシート
ADC Channels	NO
Additional Feature	OPERATES AT 3V MINIMUM SUPPLY @ 2 MHZ
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
CPU Family	MELPS740
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e0
Length	56.4 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	8
Number of I/O Lines	58
Number of Serial I/Os	1
Number of Terminals	64
Number of Timers	4
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP64,.75
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
RAM (bytes)	384
ROM (words)	16384
ROM Programmability	OTPROM
Seated Height-Max	5.08 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	13 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
