M37546G4SP データシート

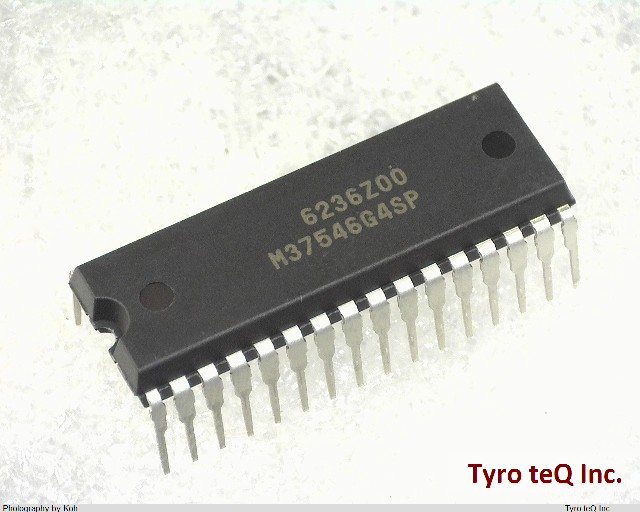

Name: M37546G4SP
Brand: RENESAS
SKU: 230761659-0000-0000-0000

M37546G4SP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M37546G4SP の詳細情報

型番	M37546G4SP
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 1.8V MINIMUM SUPPLY
Address Bus Width	0
Bit Size	8
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDIP-T32
JESD-609 Code	e0
Length	28 mm
Number of I/O Lines	25
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP32,.4
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	512
ROM (words)	16384
ROM Programmability	MROM
Seated Height-Max	5.08 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	9.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10.16 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
