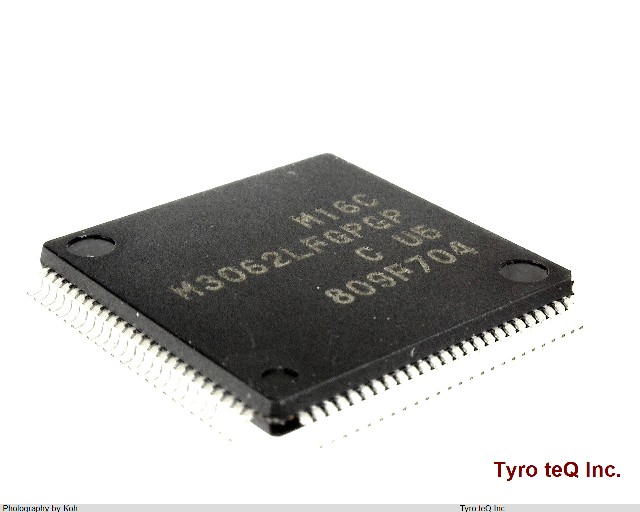

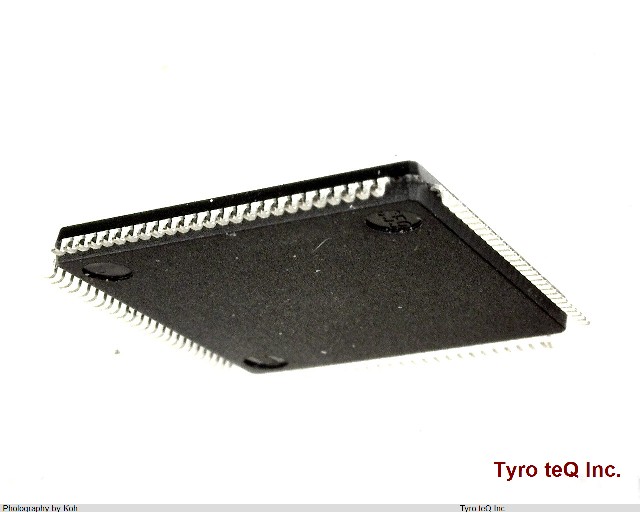

M3062LFGPGP#U5C

Name: M3062LFGPGP#U5C
Brand: RENESAS
SKU: 230072403-0000-0000-0000

M3062LFGPGP#U5C - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M3062LFGPGP#U5C の詳細情報

型番	M3062LFGPGP#U5C
メーカー	RENESAS
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 10 MHZ
Address Bus Width	20
Bit Size	16
CPU Family	M16C
Clock Frequency-Max	16 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
Length	14 mm
Moisture Sensitivity Level	1
Number of I/O Lines	88
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	20480
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	24 rpm
Sub Category	Microcontrollers
Supply Current-Max	27 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
