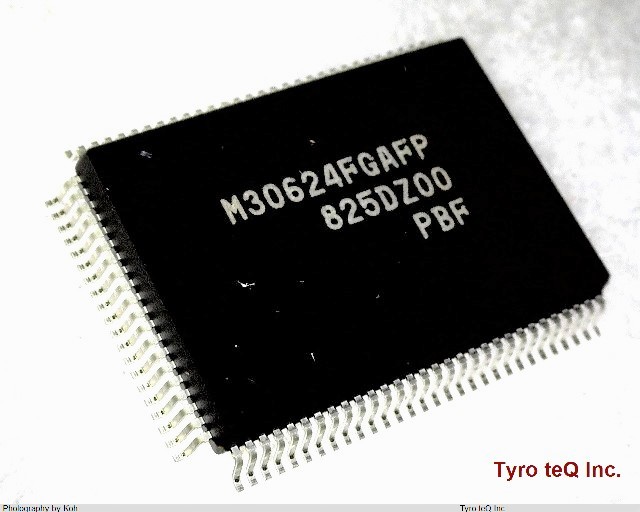

M30624FGAFP データシート

Name: M30624FGAFP
Brand: RENESAS
SKU: 400042280-0000-0000-0000

M30624FGAFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

M30624FGAFP の詳細情報

型番	M30624FGAFP
メーカー	RENESAS
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY
Address Bus Width	20
Bit Size	16
Boundary Scan	NO
CPU Family	M16C
Clock Frequency-Max	16 MHz
Connectivity	UART(3)
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PQFP-G100
JESD-609 Code	e0
Length	20 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of I/O Lines	88
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP100,.7X.9
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	20480
ROM (words)	131072
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.2 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Time@Peak Reflow Temperature-Max (s)	20
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
