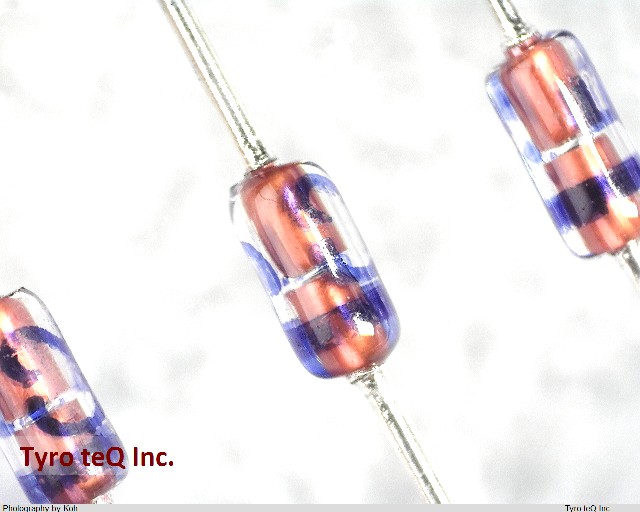

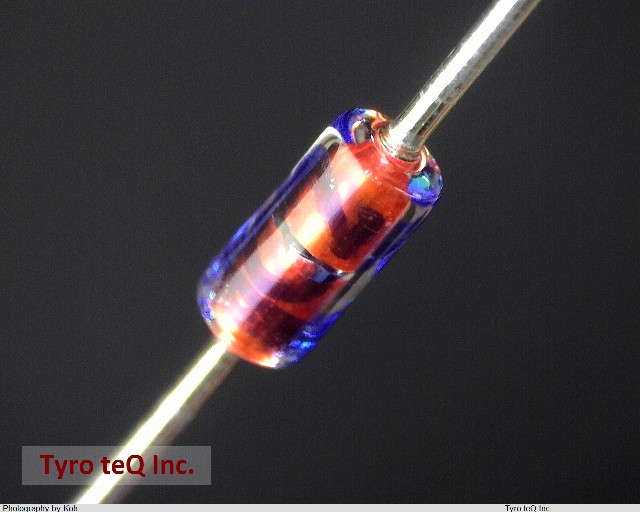

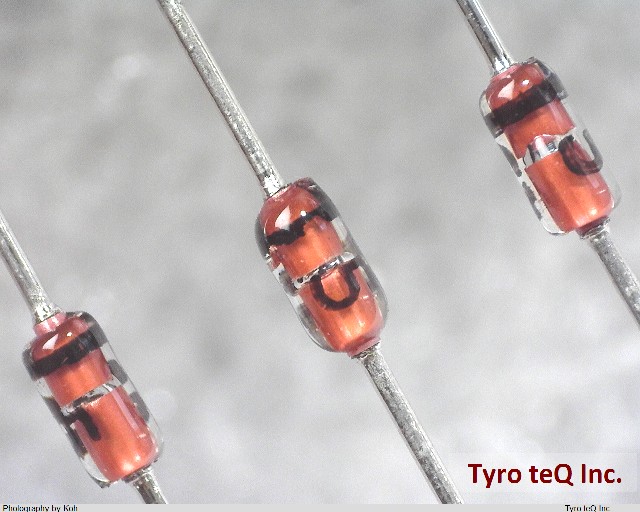

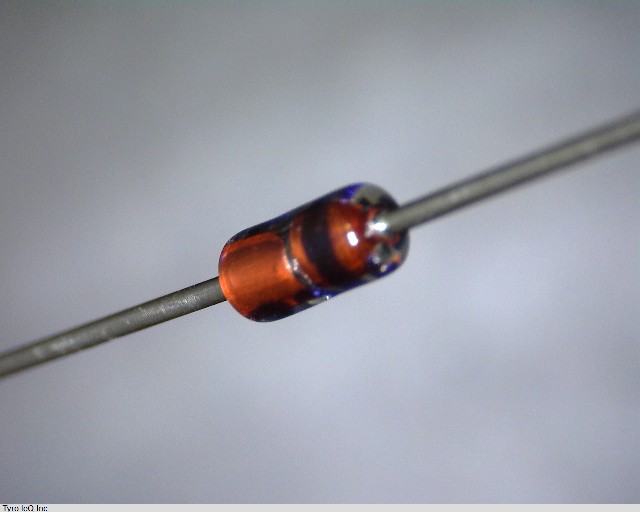

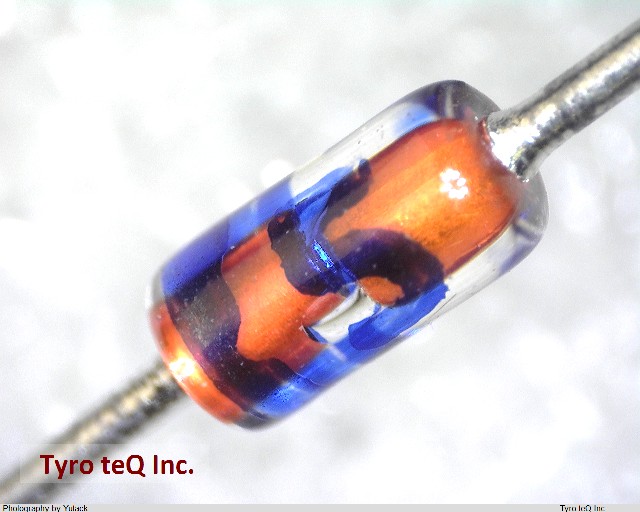

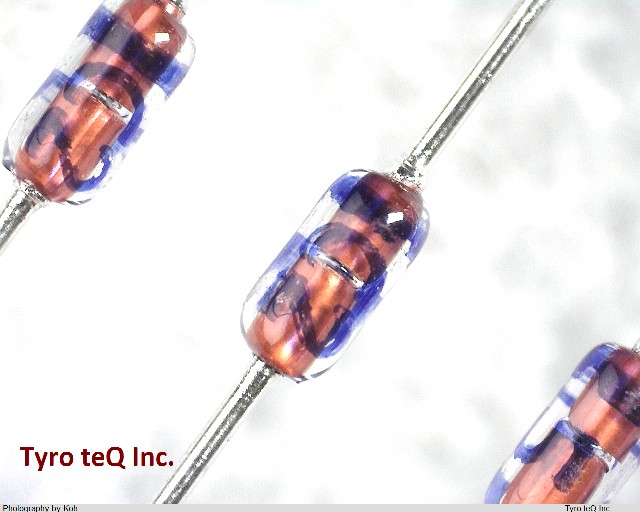

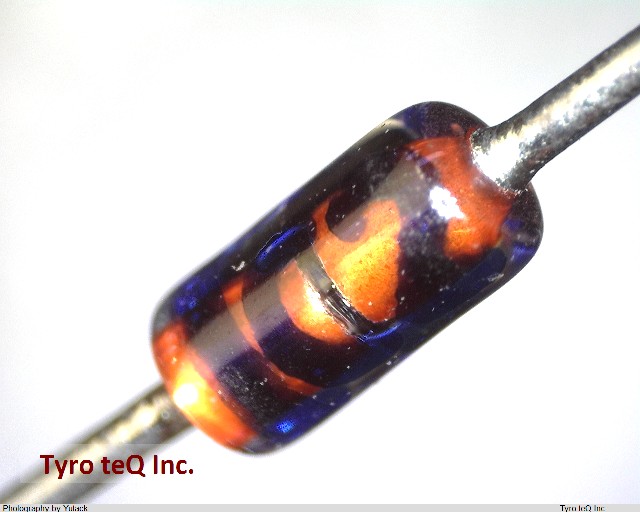

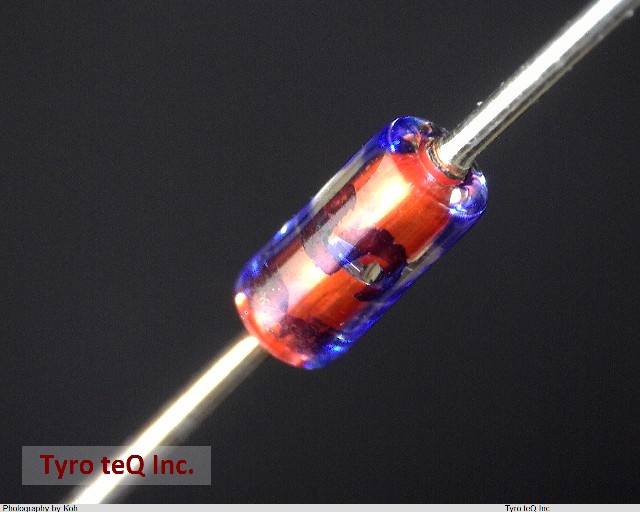

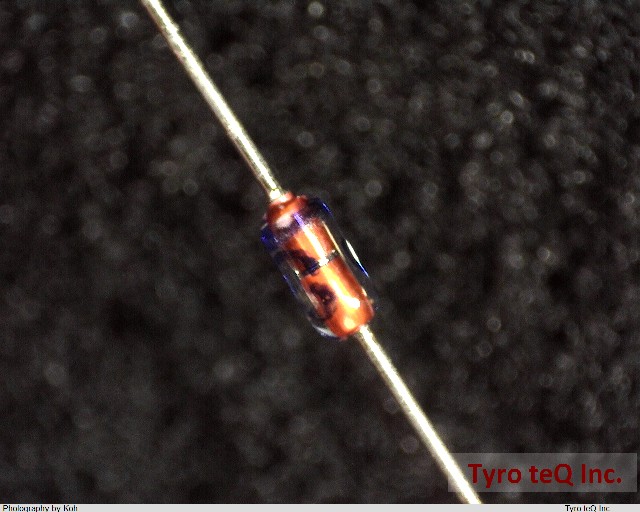

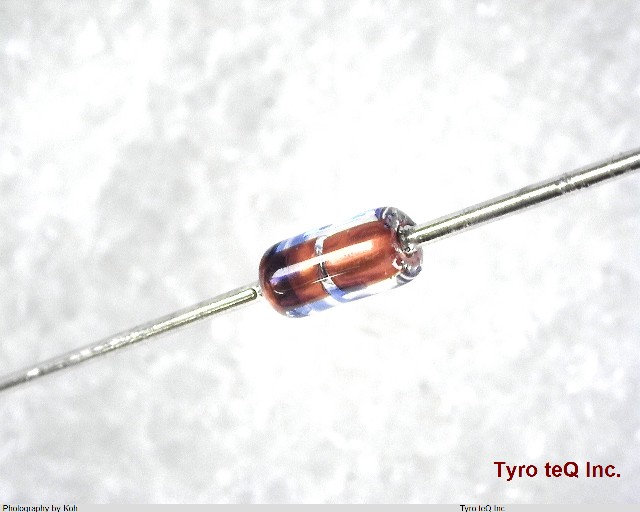

HZ5C2-E データシート

Name: HZ5C2-E
Brand: RENESAS
SKU: 180148751-0000-0000-0000

HZ5C2-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HZ5C2-E の詳細情報

型番	HZ5C2-E
メーカー	RENESAS
データシート
Additional Feature	LOW IMPEDANCE
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	ZENER DIODE
JEDEC-95 Code	DO-35
JESD-30 Code	O-XALF-W2
JESD-609 Code	e2
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Package Body Material	UNSPECIFIED
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.5 W
Qualification Status	Not Qualified
Reference Voltage-Nom	5.1 V
Surface Mount	NO
Technology	ZENER
Terminal Finish	Tin/Copper (Sn/Cu)
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	1.96 %
Working Test Current	5 mA
