HZ11C1 データシート

Name: HZ11C1
Brand: RENESAS
SKU: 180048742-0000-0000-0000

HZ11C1 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

ツェナー電圧 MIN10.9～MAX11.3 Iz(mA) 5

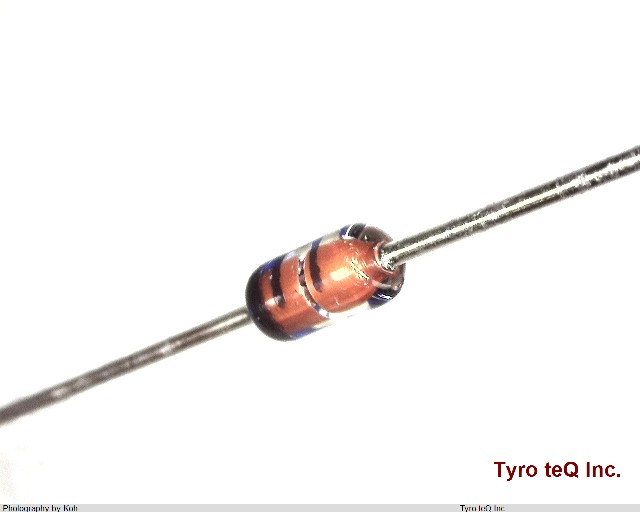

HZ11C1 の詳細情報

型番	HZ11C1
メーカー	RENESAS
データシート
Additional Feature	LOW IMPEDANCE
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	ZENER DIODE
Dynamic Impedance-Max	25 ohm
JEDEC-95 Code	DO-35
JESD-30 Code	O-LALF-W2
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.4 W
Qualification Status	Not Qualified
Reference Standard	TS 16949
Reference Voltage-Nom	11.1 V
Reverse Current-Max	1 uA
Reverse Test Voltage	7.5 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	ZENER
Terminal Finish	Tin/Copper (Sn/Cu)
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	1.8 %
Working Test Current	0.5 mA
