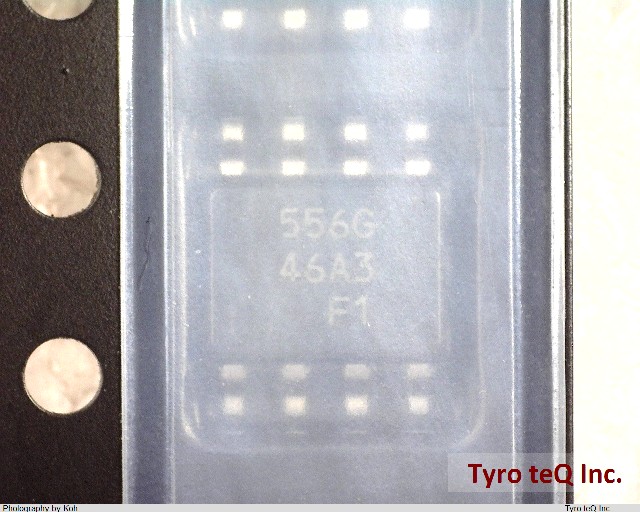

HN58X25256FPIAG#S0

Name: HN58X25256FPIAG#S0
Brand: RENESAS
SKU: 180156684-0000-0000-0000

HN58X25256FPIAG#S0 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HN58X25256FPIAG#S0 の詳細情報

型番	HN58X25256FPIAG#S0
メーカー	RENESAS
Additional Feature	IT IS ALSO OPERATES IN 3MHZ CLOCK FREQUENCY AT 1.8V MIN SUPPLY
Clock Frequency-Max (fCLK)	5 MHz
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.89 mm
Memory Density	262144 bit
Memory IC Type	EEPROM
Memory Width	8
Number of Functions	1
Number of Terminals	8
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	32KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	1.73 mm
Serial Bus Type	SPI
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.5 V
Supply Voltage-Nom (Vsup)	3.6 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
Write Cycle Time-Max (tWC)	8 ms
