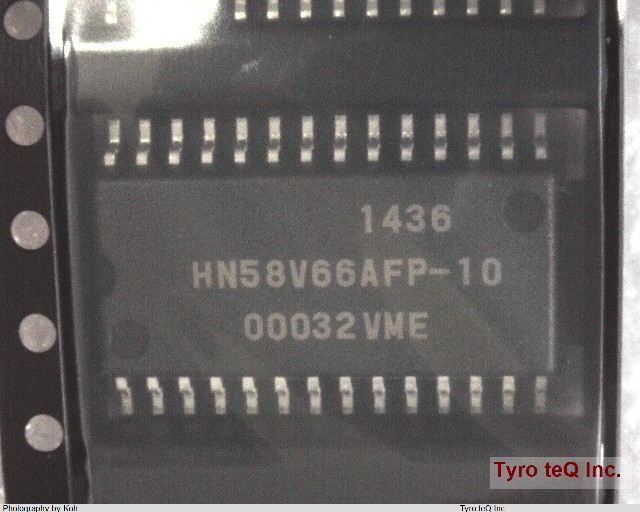

HN58V66AFP10E

Name: HN58V66AFP10E
Brand: RENESAS
SKU: 180065895-0000-0000-0000

HN58V66AFP10E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HN58V66AFP10E の詳細情報

型番	HN58V66AFP10E
メーカー	RENESAS
Access Time-Max	100 ns
Command User Interface	NO
Data Polling	YES
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e6
Length	18.3 mm
Memory Density	65536 bit
Memory IC Type	EEPROM
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	28
Number of Words	8192 words
Number of Words Code	8K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	8KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.45
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Page Size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	2.5 mm
Standby Current-Max	5.0E-6 Amp
Sub Category	EEPROMs
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	YES
Width	8.4 mm
Write Cycle Time-Max (tWC)	10 ms
