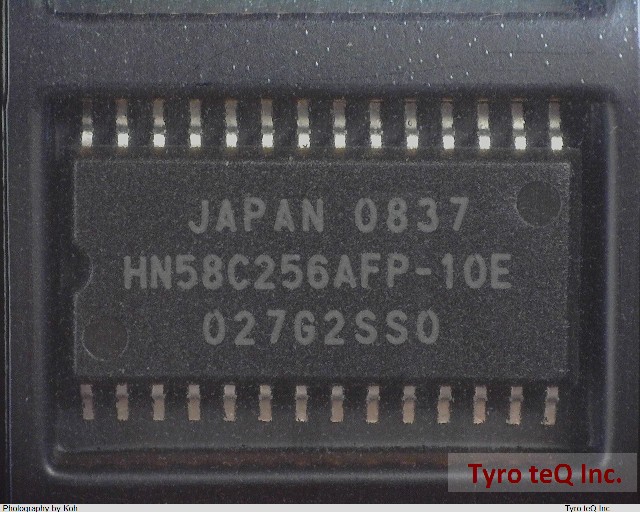

HN58C256AFP10E

Name: HN58C256AFP10E
Brand: RENESAS
SKU: 180048739-0000-0000-0000

HN58C256AFP10E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HN58C256AFP10E の詳細情報

型番	HN58C256AFP10E
メーカー	RENESAS
Access Time-Max	100 ns
Command User Interface	NO
Data Polling	YES
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G28
Length	18.3 mm
Memory Density	262144 bit
Memory IC Type	EEPROM
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	32KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.45
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Page Size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Programming Voltage	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.5 mm
Standby Current-Max	2.0E-5 Amp
Sub Category	EEPROMs
Supply Current-Max	0.03 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	YES
Width	8.4 mm
Write Cycle Time-Max (tWC)	10 ms
