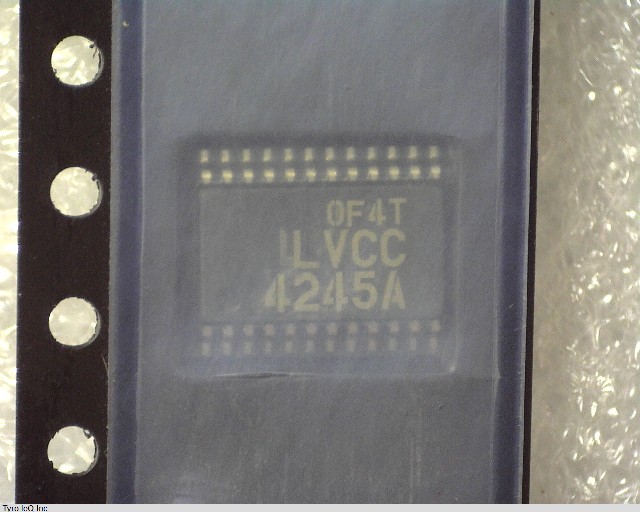

HD74LVCC4245ATEL データシート

Name: HD74LVCC4245ATEL
Brand: RENESAS
SKU: 180049464-0000-0000-0000

HD74LVCC4245ATEL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ：TSSOP|梱包：テーピング（リール）

HD74LVCC4245ATEL の詳細情報

型番	HD74LVCC4245ATEL
メーカー	RENESAS
種別	CMOS標準ロジックIC
データシート
Additional Feature	ALSO REQUIRES A SECONDARY SUPPLY OF 2.7V TO 5.5V
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	7.8 mm
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP24,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3,5 V
Prop. Delay@Nom-Sup	7 ns
Propagation Delay (tpd)	7.1 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Translation	N/A
Width	4.4 mm
