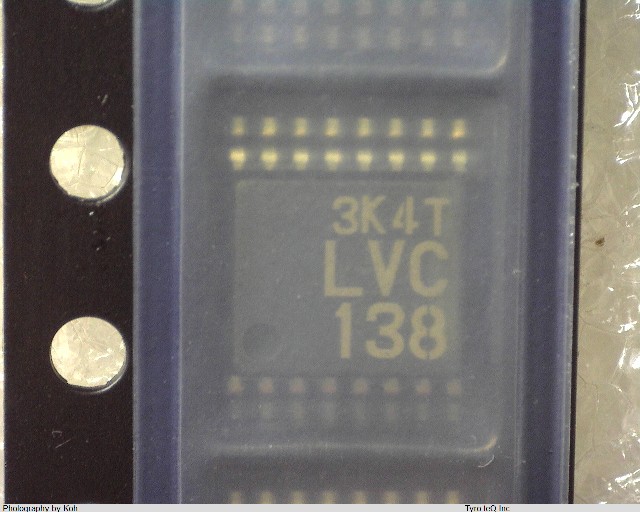

HD74LVC138TELL データシート

Name: HD74LVC138TELL
Brand: RENESAS
SKU: 180014884-0000-0000-0000

HD74LVC138TELL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ：TSSOP|梱包：テーピング（リール）

HD74LVC138TELL の詳細情報

型番	HD74LVC138TELL
メーカー	RENESAS
種別	CMOS標準ロジックIC
データシート
Family	LVC/LCX/Z
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	9 ns
Propagation Delay (tpd)	10 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	2.7 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	4.4 mm
