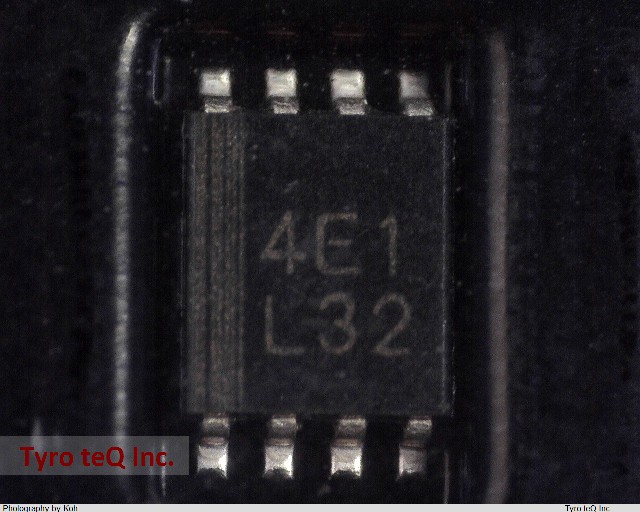

HD74LV2G32AUSE データシート

Name: HD74LV2G32AUSE
Brand: RENESAS
SKU: 180014840-0000-0000-0000

HD74LV2G32AUSE - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC

HD74LV2G32AUSE の詳細情報

型番	HD74LV2G32AUSE
メーカー	RENESAS
種別	CMOS標準ロジックIC
データシート
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.3 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OR GATE
Max I(ol)	0.006 Amp
Moisture Sensitivity Level	1
Number of Functions	2
Number of Inputs	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	34 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	0.9 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	2 mm
