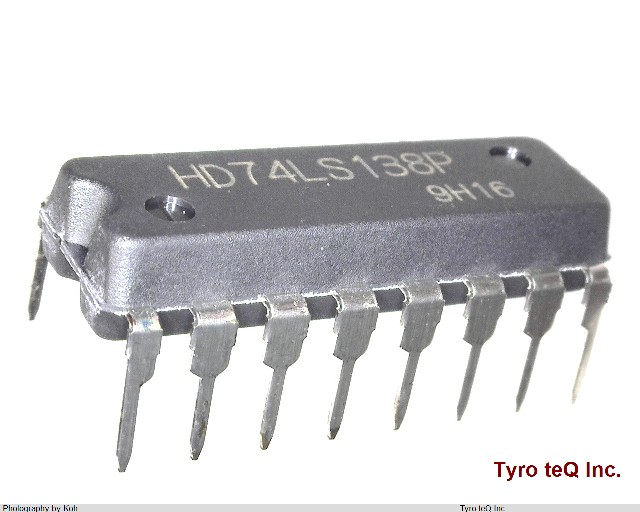

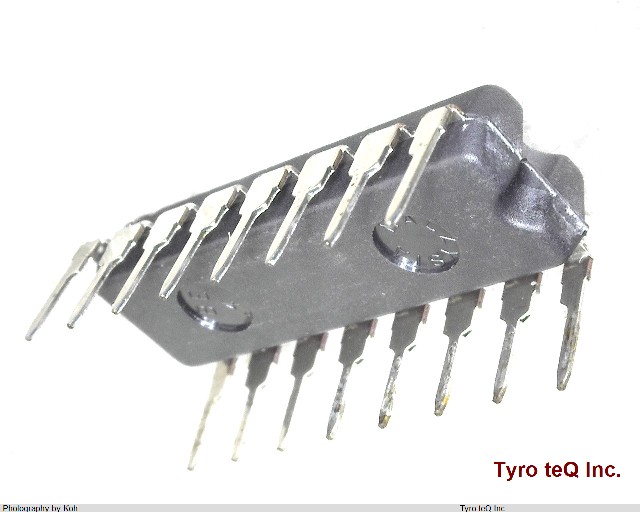

HD74LS138P-E データシート

Name: HD74LS138P-E
Brand: RENESAS
SKU: 180082702-0000-0000-0000

HD74LS138P-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|鉛フリー品

HD74LS138P-E の詳細情報

型番	HD74LS138P-E
メーカー	RENESAS
種別	アドバンストLS-TTL
データシート
Family	LS
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	19.2 mm
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	10 mA
Prop. Delay@Nom-Sup	41 ns
Propagation Delay (tpd)	41 ns
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
