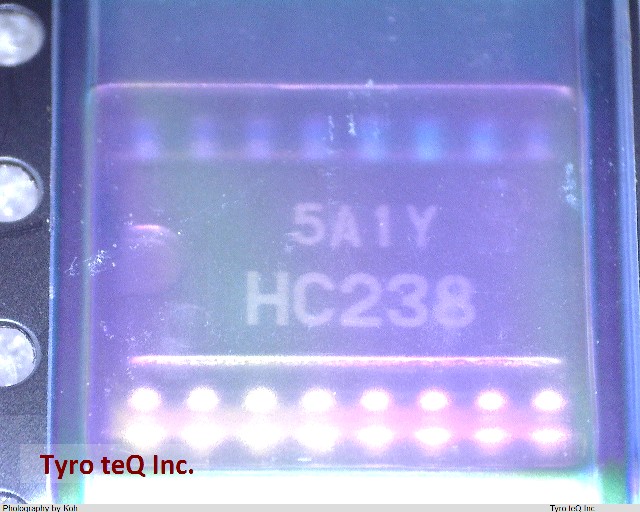

HD74HC238FPEL-E データシート

Name: HD74HC238FPEL-E
Brand: RENESAS
SKU: 180137109-0000-0000-0000

HD74HC238FPEL-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|鉛フリー品

HD74HC238FPEL-E の詳細情報

型番	HD74HC238FPEL-E
メーカー	RENESAS
種別	高速CMOS標準ロジックIC
データシート
Family	HC/UH
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G16
Length	10.06 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.004 Amp
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	38 ns
Propagation Delay (tpd)	190 ns
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.5 mm
