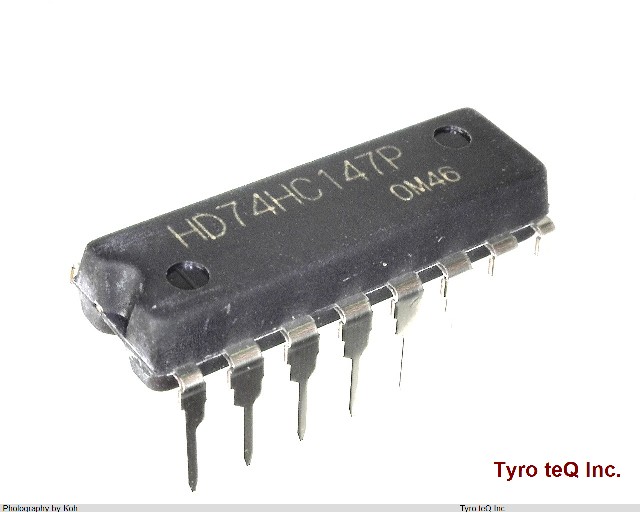

HD74HC147P データシート

Name: HD74HC147P
Brand: RENESAS
SKU: 180013926-0000-0000-0000

HD74HC147P - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC

HD74HC147P の詳細情報

型番	HD74HC147P
メーカー	RENESAS
種別	高速CMOS標準ロジックIC
データシート
Family	HC
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.2 mm
Logic IC Type	ENCODER
Moisture Sensitivity Level	1
Number of Bits	9
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Propagation Delay (tpd)	275 ns
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	Arithmetic Circuits
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
