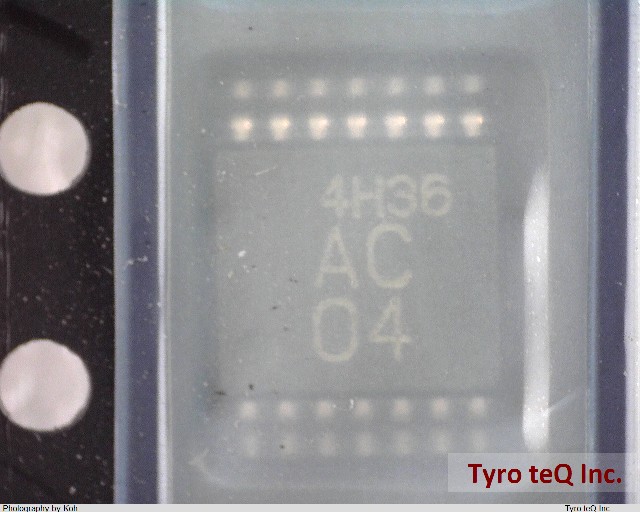

HD74AC04TELL-E データシート

Name: HD74AC04TELL-E
Brand: RENESAS
SKU: 180113359-0000-0000-0000

HD74AC04TELL-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|鉛フリー品

HD74AC04TELL-E の詳細情報

型番	HD74AC04TELL-E
メーカー	RENESAS
種別	Advanced CMOSロジックIC
データシート
Family	AC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	5 mm
Logic IC Type	INVERTER
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Propagation Delay (tpd)	10 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	4.4 mm
