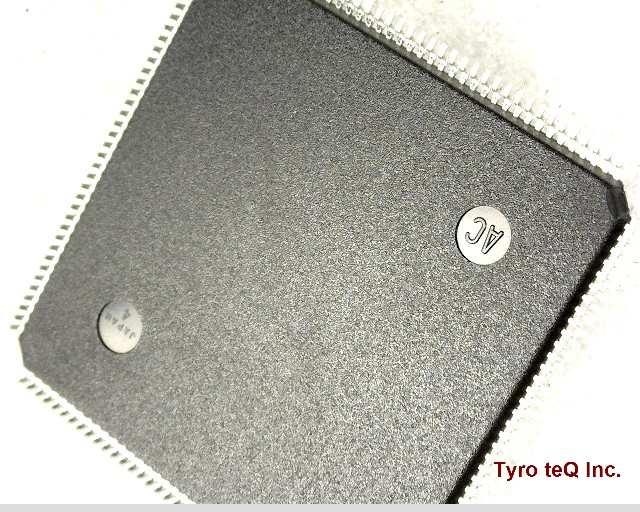

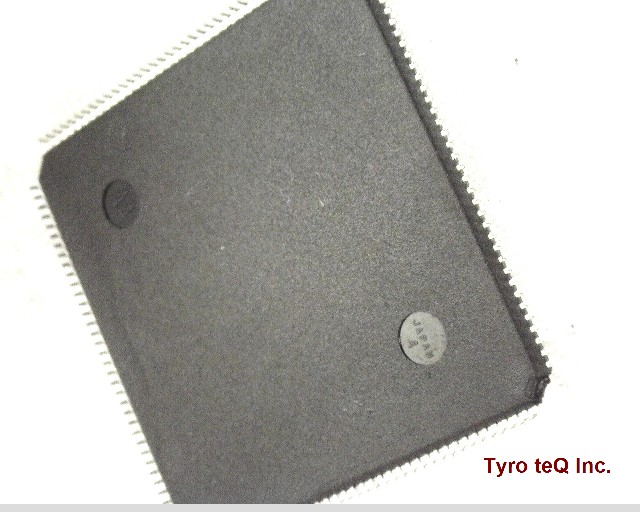

HD64F7145F50V データシート

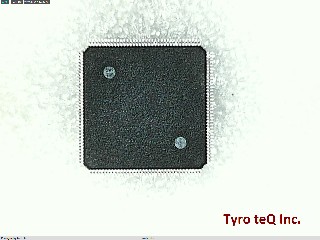

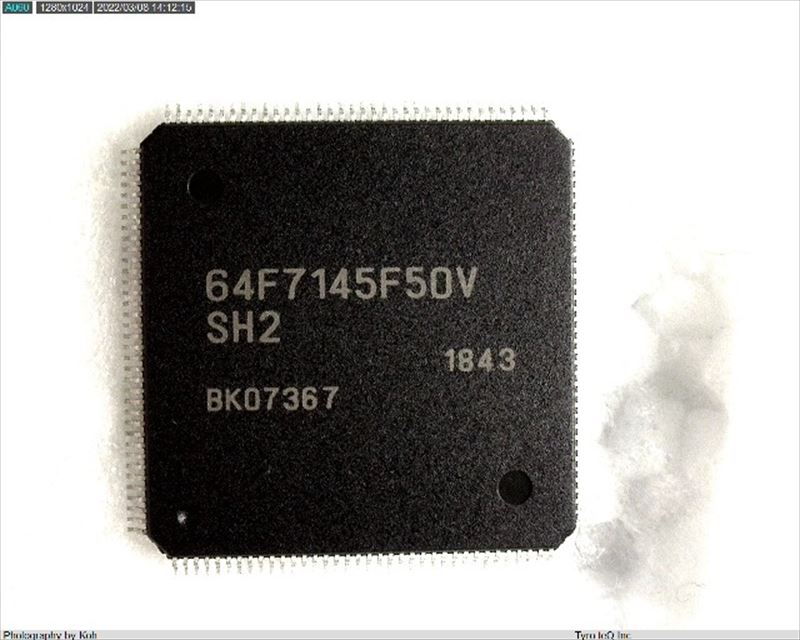

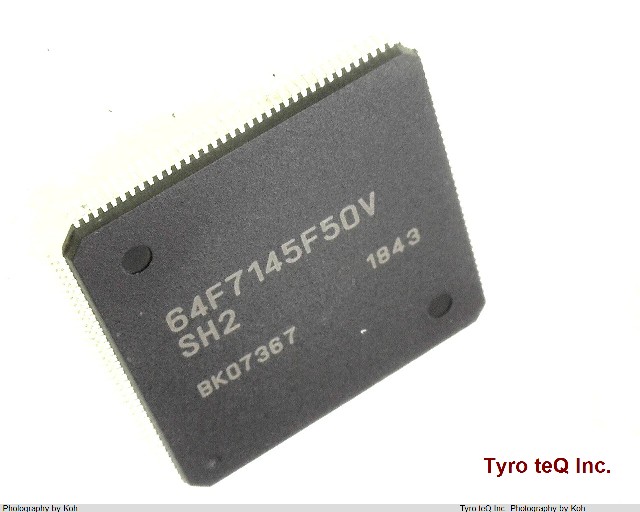

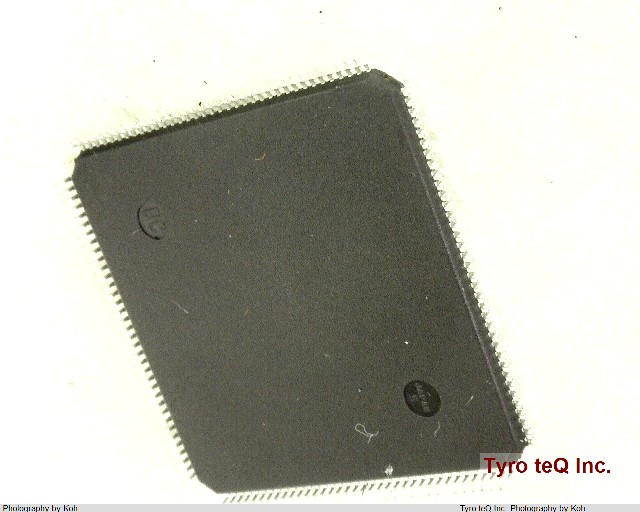

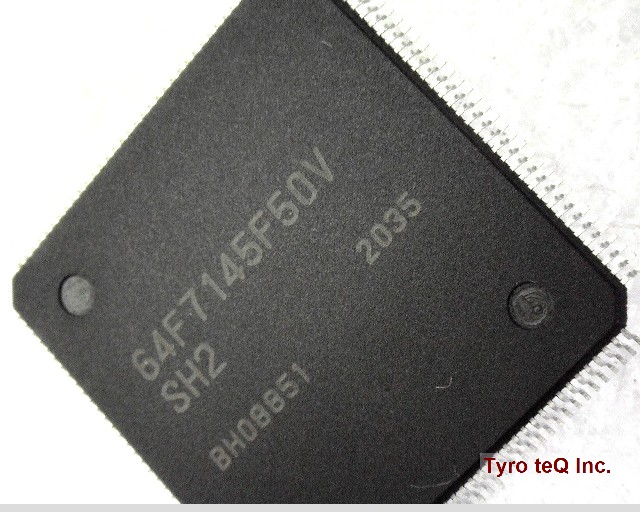

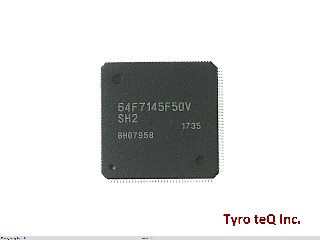

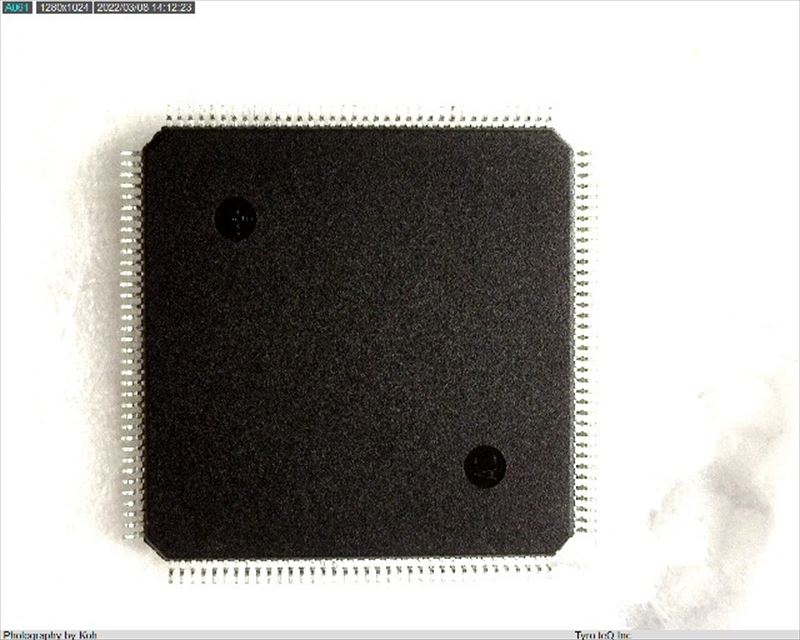

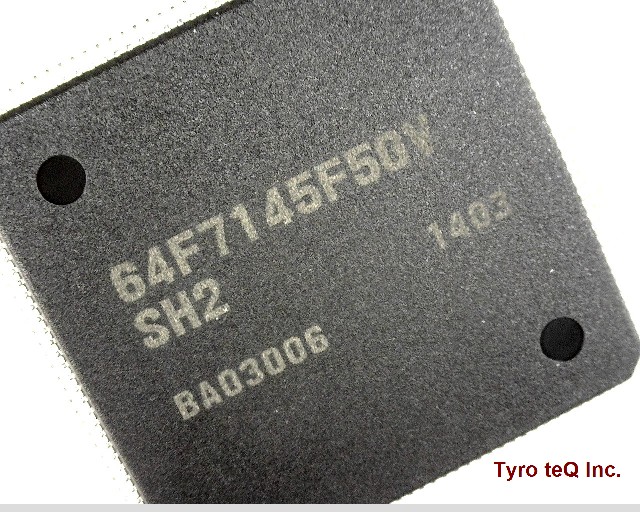

Name: HD64F7145F50V
Brand: RENESAS
SKU: 180026155-0000-0000-0000

HD64F7145F50V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F7145F50V の詳細情報

型番	HD64F7145F50V
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	32
CPU Family	SH-2
Clock Frequency-Max	12.5 MHz
Connectivity	I2C, CSI(4), UART(4)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	32
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e6
Length	20 mm
Moisture Sensitivity Level	3
Number of I/O Lines	106
Number of Terminals	144
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	DMA(4), POR, PWM, TIMER(7), WDT
Qualification Status	Not Qualified
RAM (bytes)	8192
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	50 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
