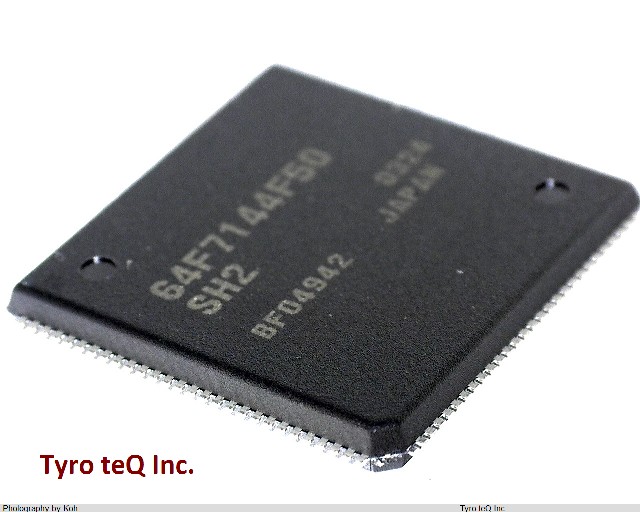

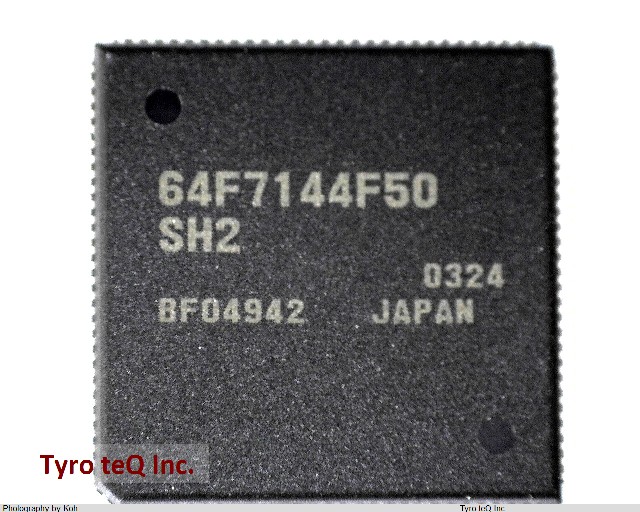

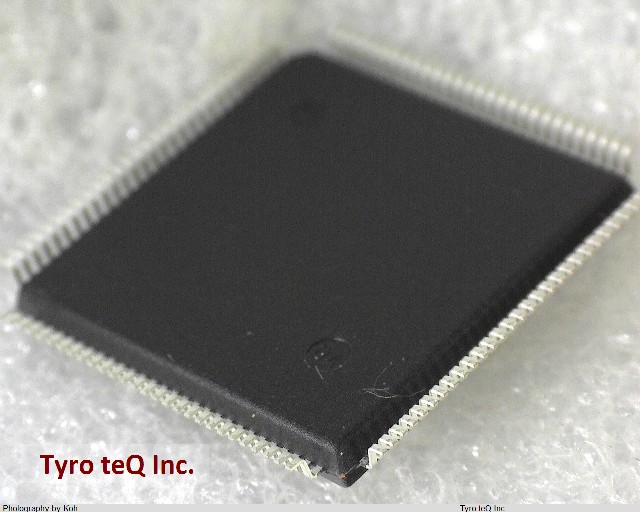

HD64F7144F50 データシート

Name: HD64F7144F50
Brand: RENESAS
SKU: 180000475-0000-0000-0000

HD64F7144F50 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F7144F50 の詳細情報

型番	HD64F7144F50
メーカー	RENESAS
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Address Bus Width	22
Bit Size	32
CPU Family	SH-2
Clock Frequency-Max	12.5 MHz
Connectivity	I2C, CSI(4), UART(4)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G112
JESD-609 Code	e0
Length	20 mm
Moisture Sensitivity Level	3
Number of I/O Lines	82
Number of Terminals	112
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP112,.91SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Peripherals	DMA(4), POR, PWM, TIMER(7), WDT
Power Supplies	3.3 V
Qualification Status	Not Qualified
RAM (bytes)	8192
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	50 rpm
Sub Category	Microcontrollers
Supply Current-Max	220 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
