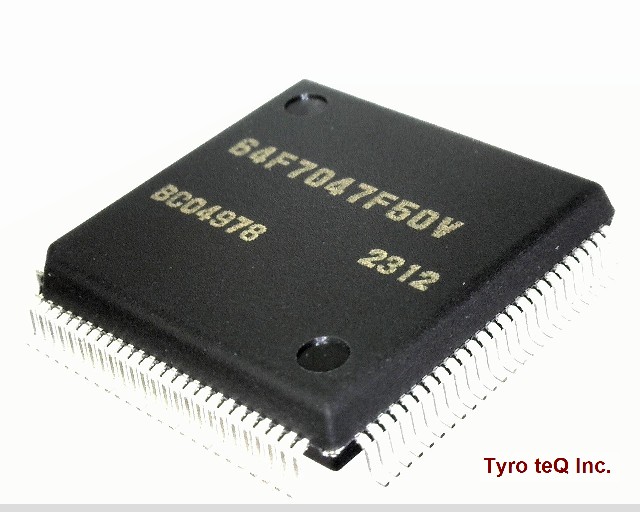

HD64F7047F50V データシート

Name: HD64F7047F50V
Brand: RENESAS
SKU: 180026150-0000-0000-0000

HD64F7047F50V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F7047F50V の詳細情報

型番	HD64F7047F50V
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	18
Bit Size	32
CPU Family	SH7000
Clock Frequency-Max	10 MHz
Connectivity	CAN, CSI(3), UART(3)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	8
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e6
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	69
Number of Terminals	100
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	DTC, POR, PWM, TIMER(7), WDT
Qualification Status	Not Qualified
RAM (bytes)	12288
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	50 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
