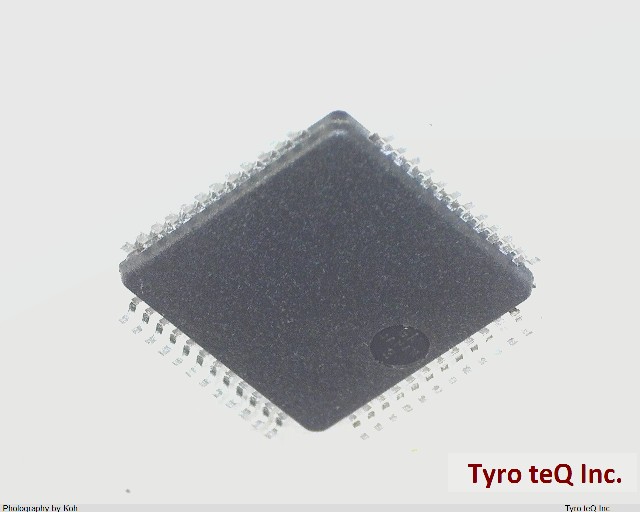

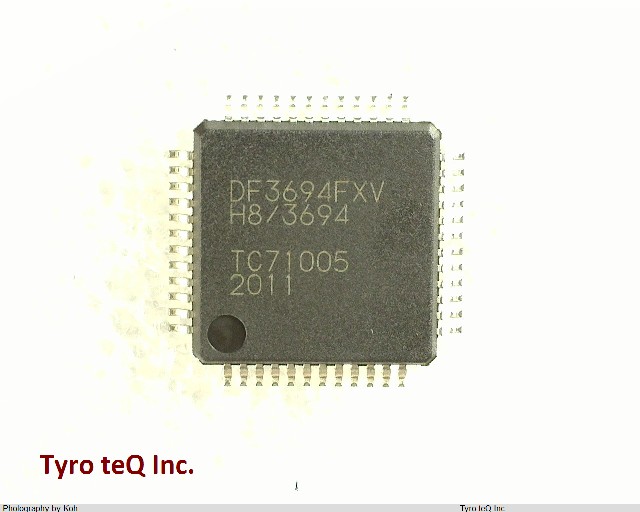

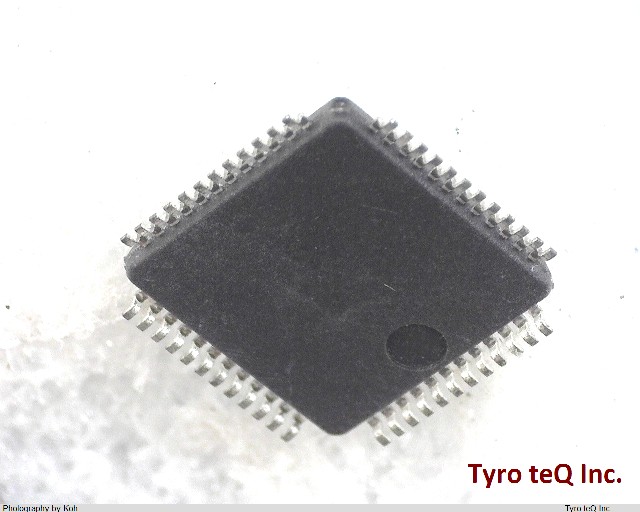

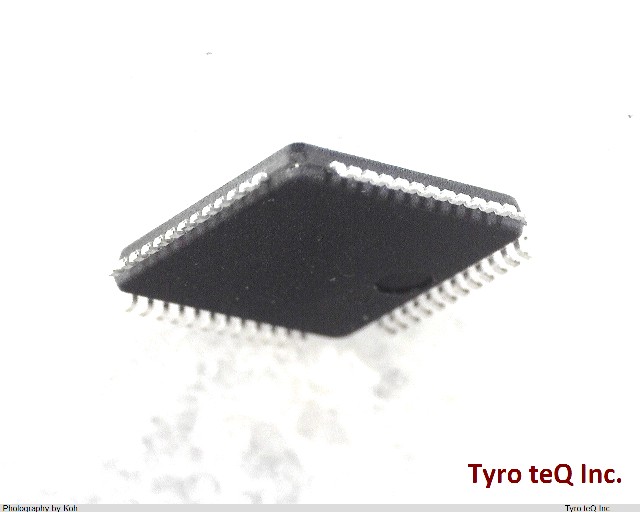

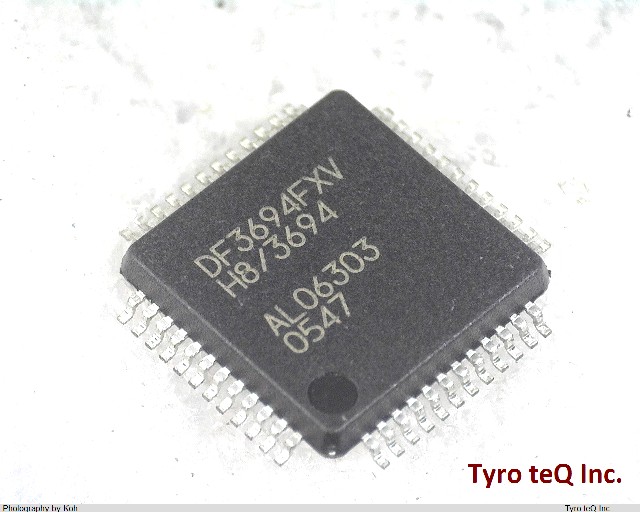

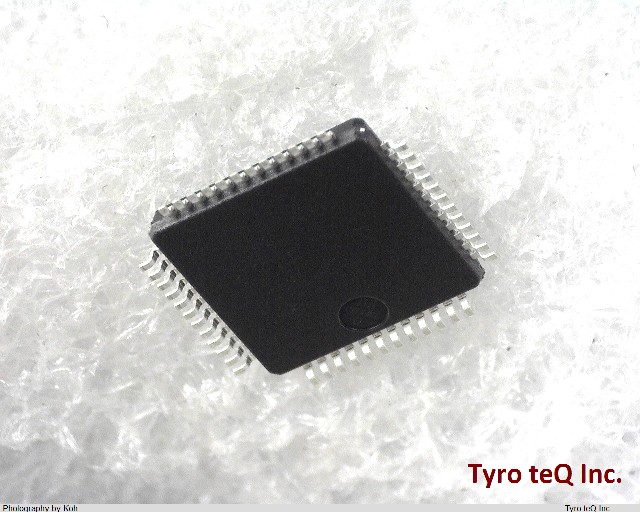

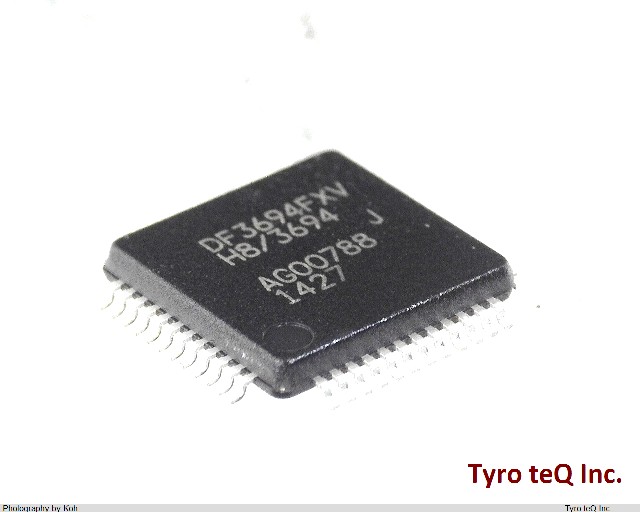

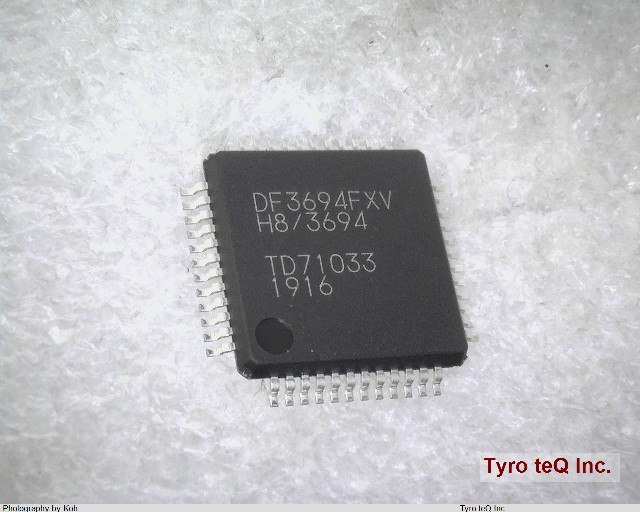

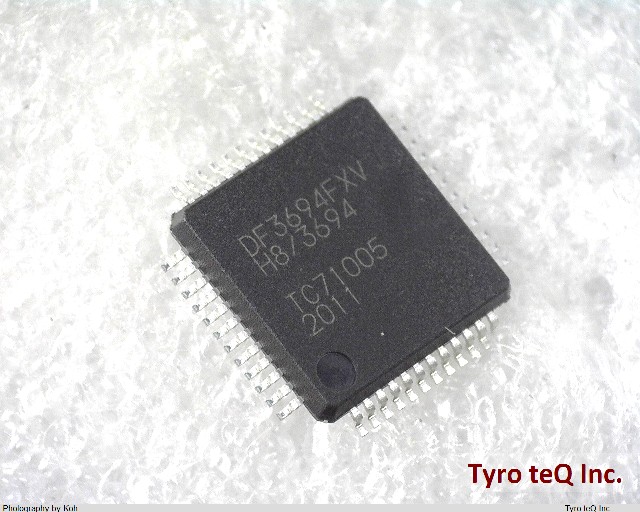

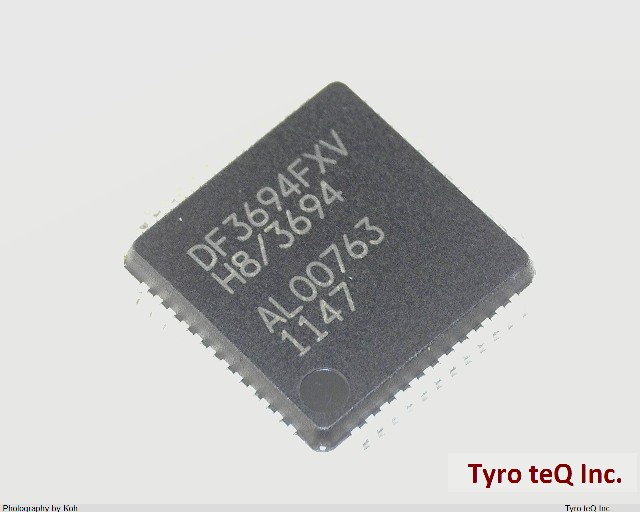

HD64F3694FXV データシート

Name: HD64F3694FXV
Brand: RENESAS
SKU: 180013260-0000-0000-0000

HD64F3694FXV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F3694FXV の詳細情報

型番	HD64F3694FXV
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	OPERATES AT 3 V MINIMUM SUPPLY @ 10 MHZ
Address Bus Width	0
Bit Size	16
CPU Family	H8/300H
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	S-PQFP-G48
JESD-609 Code	e6
Length	10 mm
Moisture Sensitivity Level	3
Number of I/O Lines	37
Number of Terminals	48
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Equivalence Code	QFP48,.48SQ
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
RAM (bytes)	2048
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	30 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	10 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
