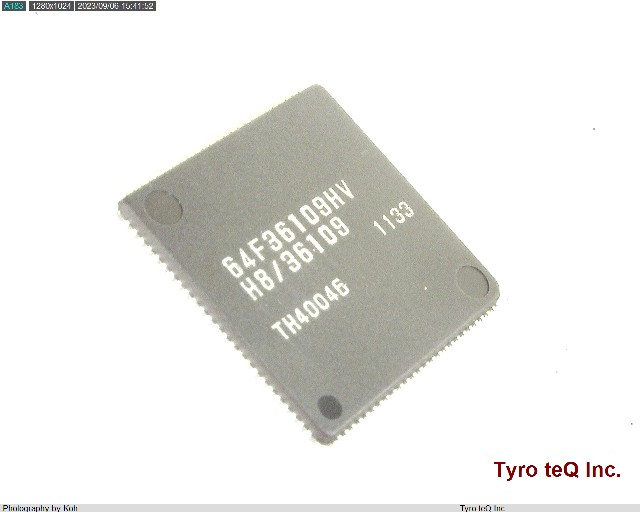

HD64F36109HV データシート

Name: HD64F36109HV
Brand: RENESAS
SKU: 180058840-0000-0000-0000

HD64F36109HV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F36109HV の詳細情報

型番	HD64F36109HV
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	IT ALSO OPERATES AT 3V MINIMUM SUPPLY @ 10 MHZ
Address Bus Width	0
Bit Size	16
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	S-PQFP-G100
Length	14 mm
Number of I/O Lines	87
Number of Terminals	100
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	20 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
