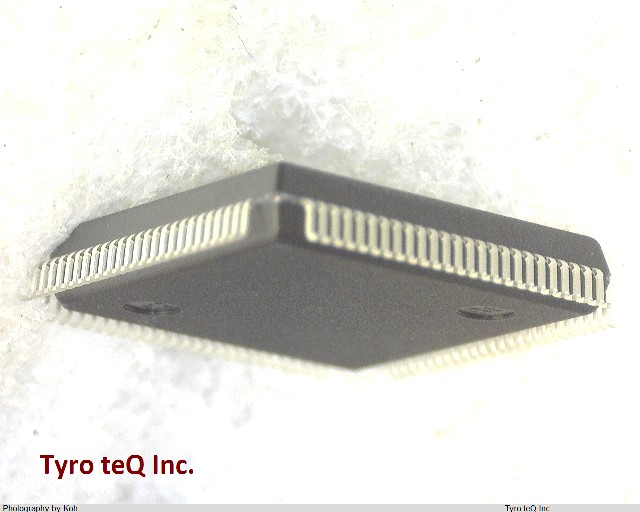

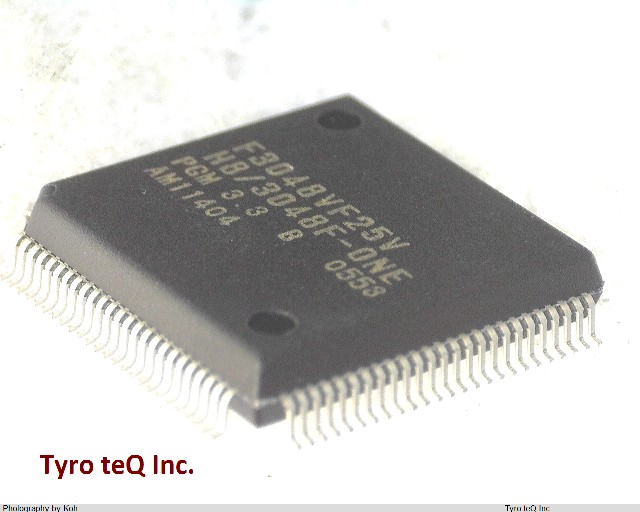

HD64F3048BVTE データシート

Name: HD64F3048BVTE
Brand: RENESAS
SKU: 180157878-0000-0000-0000

HD64F3048BVTE - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F3048BVTE の詳細情報

型番	HD64F3048BVTE
メーカー	RENESAS
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES AT 3V SUPPLY NOM @ 25MHZ
Address Bus Width	24
Bit Size	16
CPU Family	H8/300H
Clock Frequency-Max	16 MHz
Connectivity	ACIA, SCI(2), SMART CARD, UART
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e6
Length	14 mm
Number of I/O Lines	78
Number of Terminals	100
On Chip Program ROM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(4), POR, PWM(5), TIMER(6), WDT
Power Supplies	3 V
Qualification Status	Not Qualified
RAM (bytes)	4096
ROM (words)	65536
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	35 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
