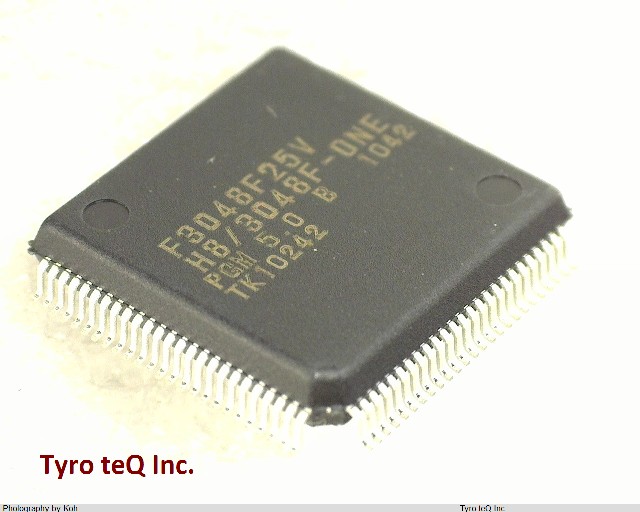

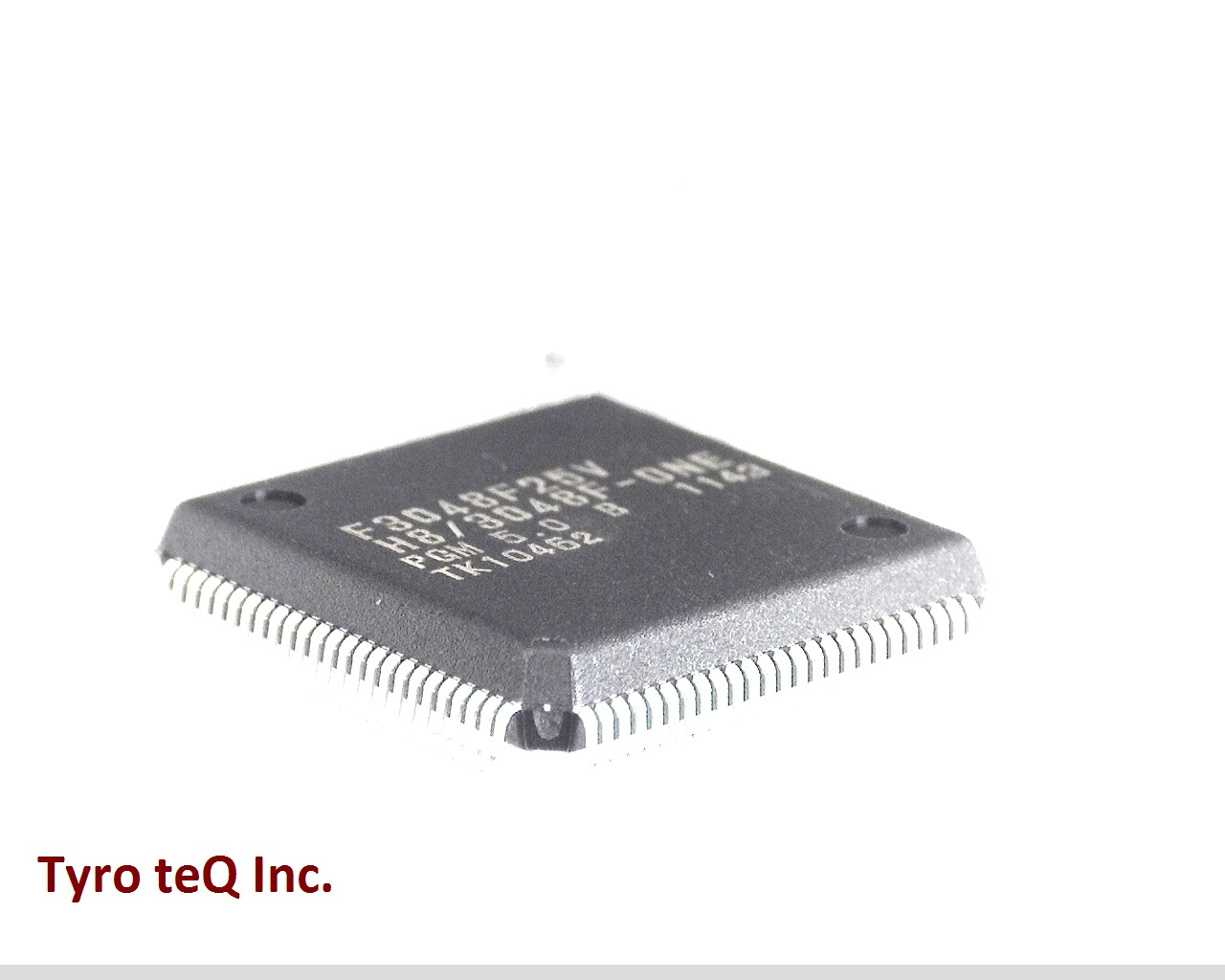

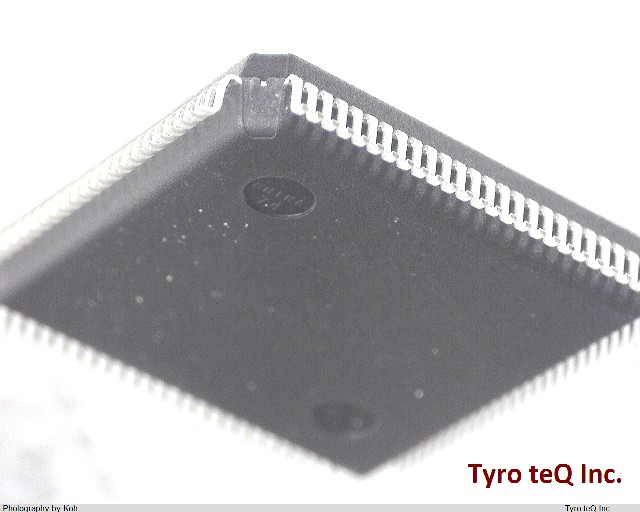

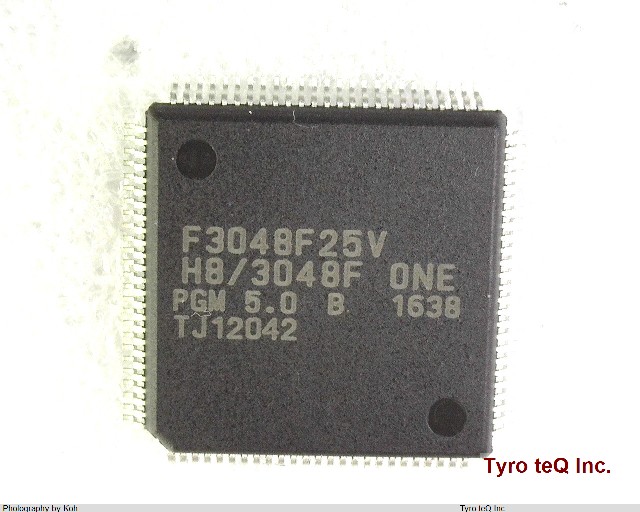

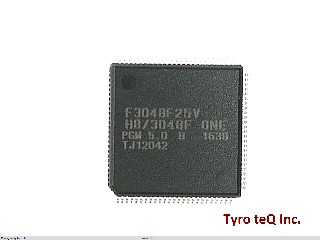

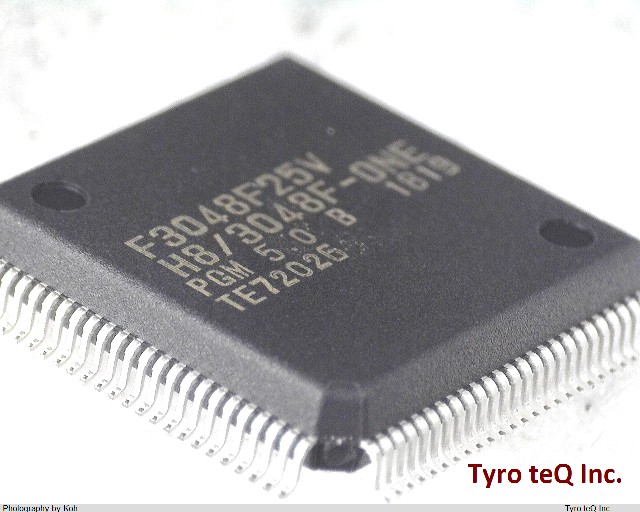

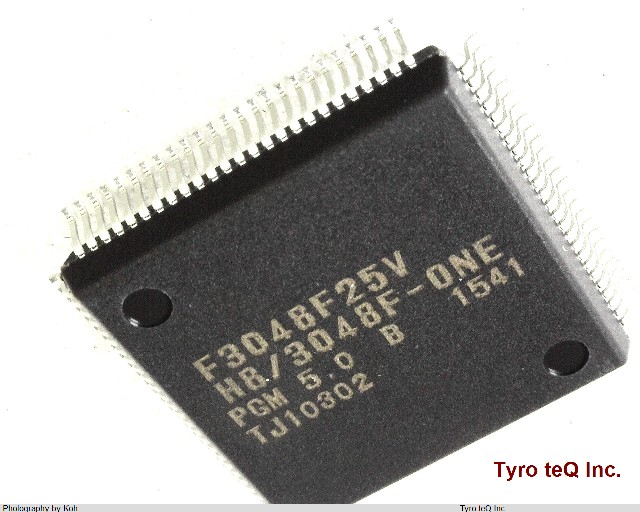

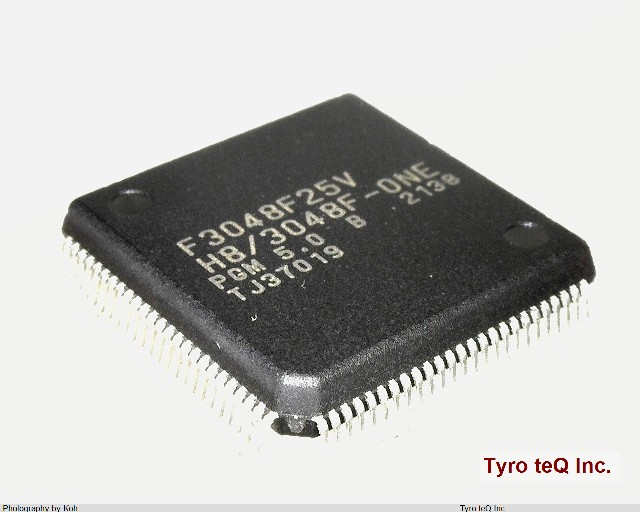

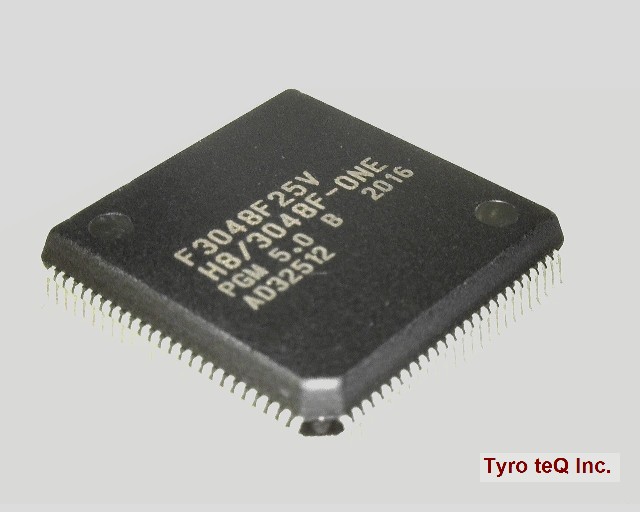

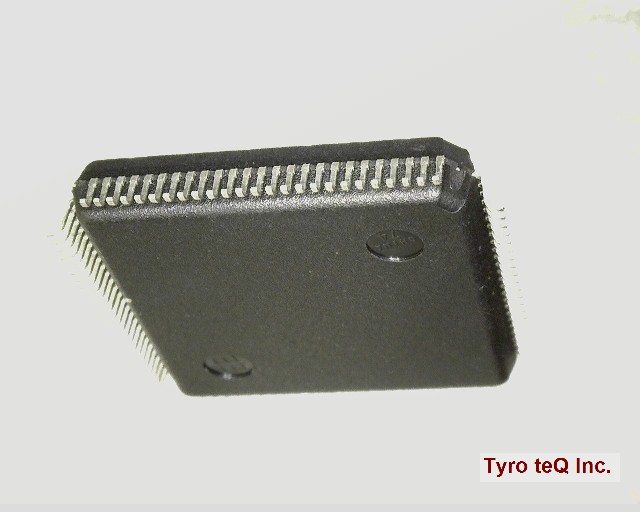

HD64F3048BF25V データシート

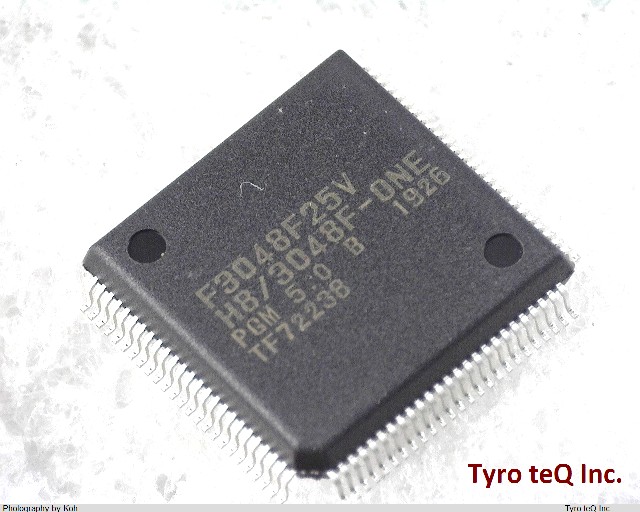

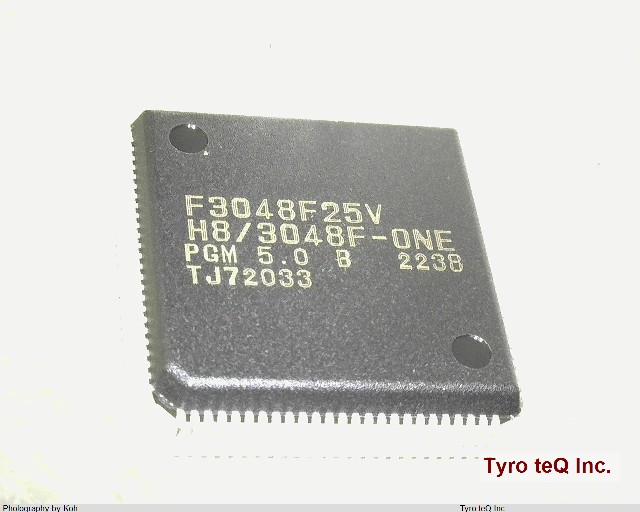

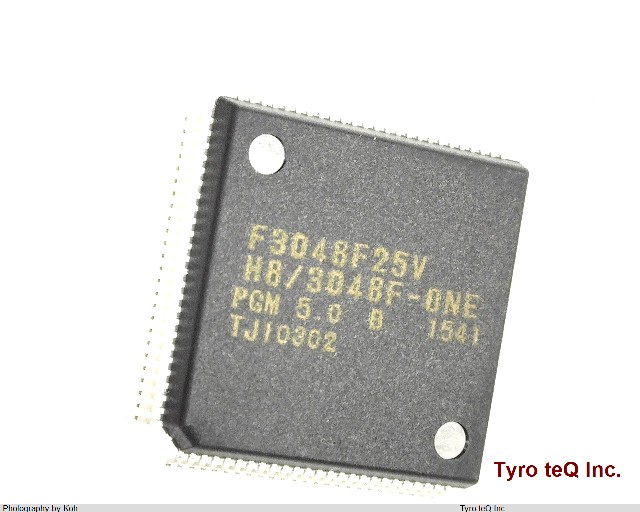

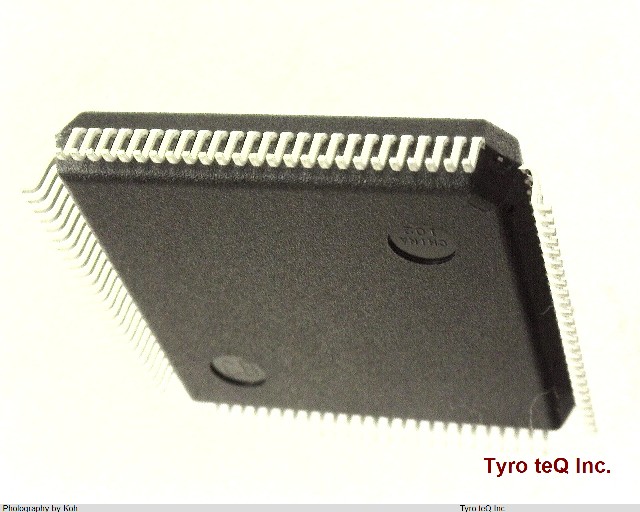

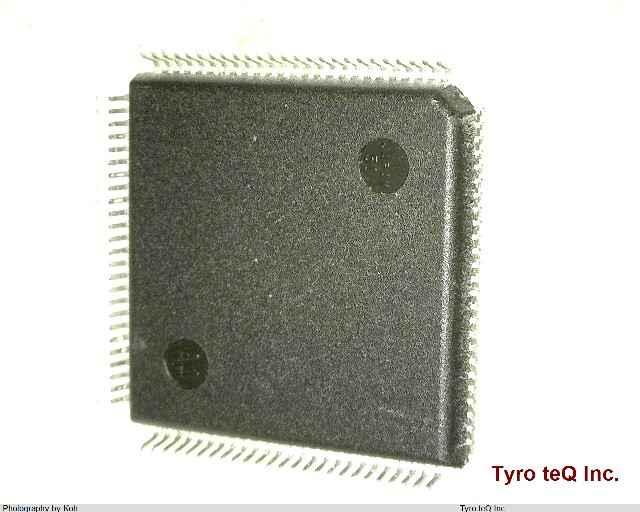

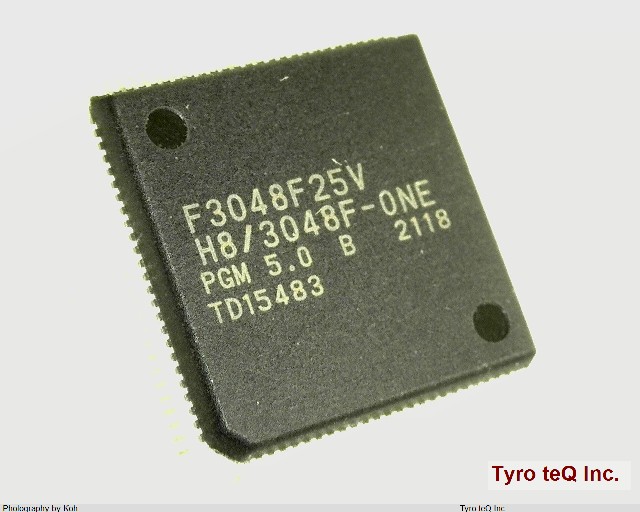

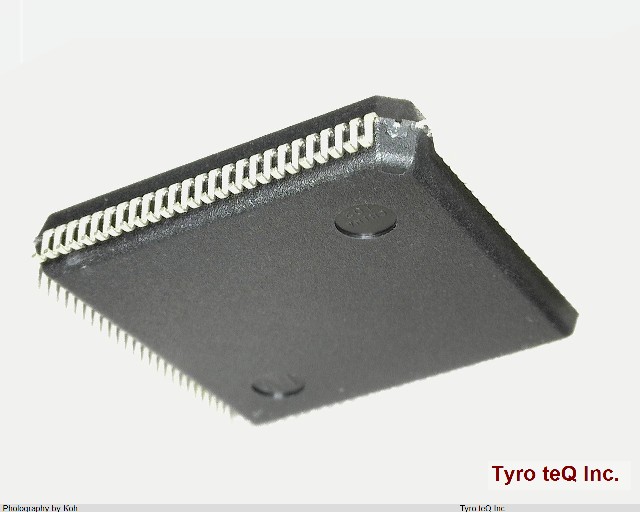

Name: HD64F3048BF25V
Brand: RENESAS
SKU: 180006940-0000-0000-0000

HD64F3048BF25V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F3048BF25V の詳細情報

型番	HD64F3048BF25V
メーカー	RENESAS
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES AT 3V SUPPLY NOM @ 25MHZ
Address Bus Width	24
Bit Size	16
CPU Family	H8/300H
Clock Frequency-Max	16 MHz
Connectivity	ACIA, SCI(2), SMART CARD, UART
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	78
Number of Terminals	100
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peripherals	DMA(4), POR, PWM(5), TIMER(6), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	4096
ROM (words)	131072
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	25 rpm
Sub Category	Microcontrollers
Supply Current-Max	75 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
