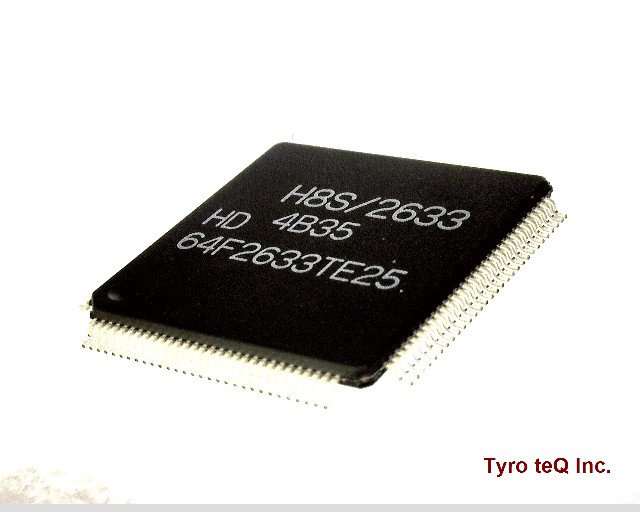

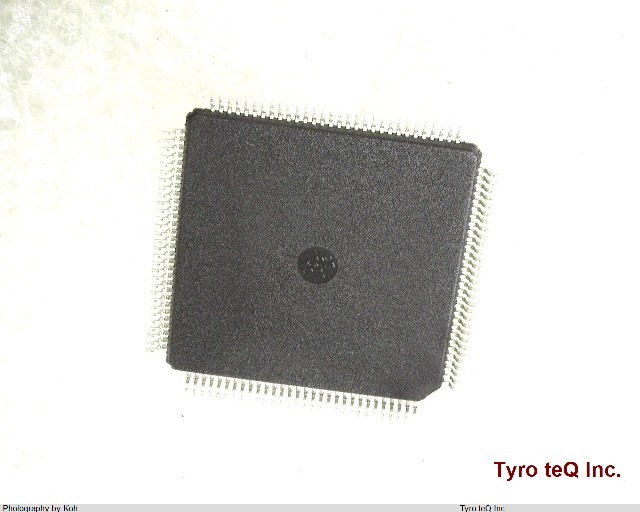

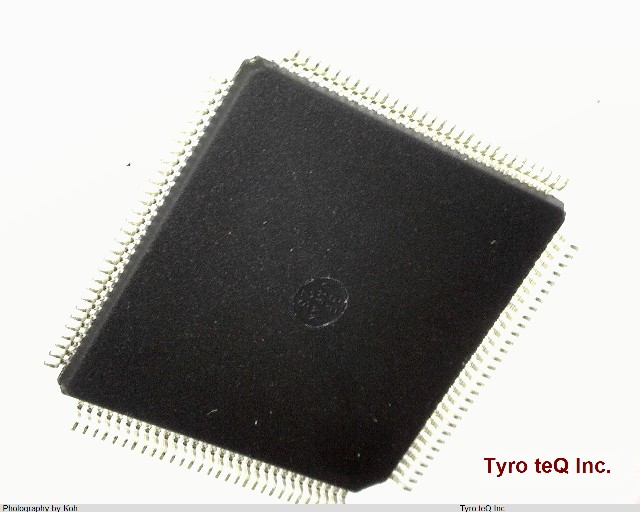

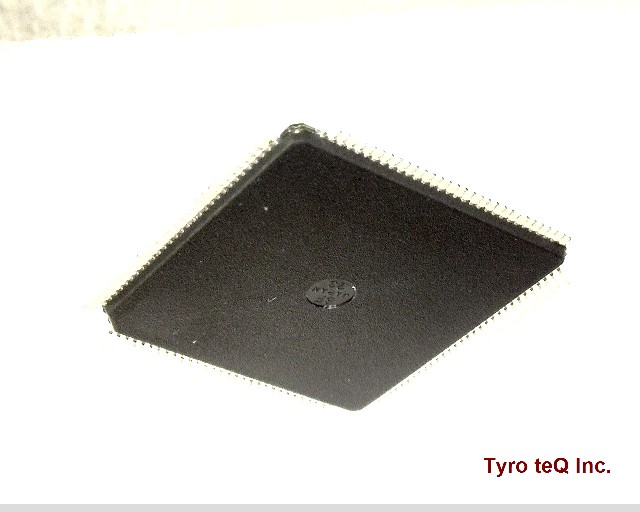

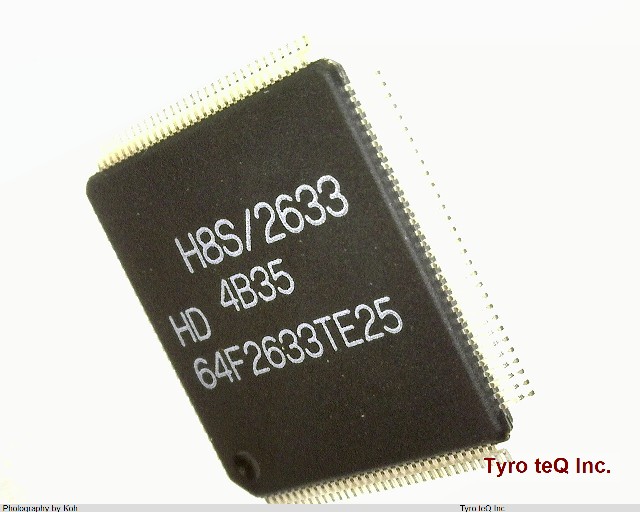

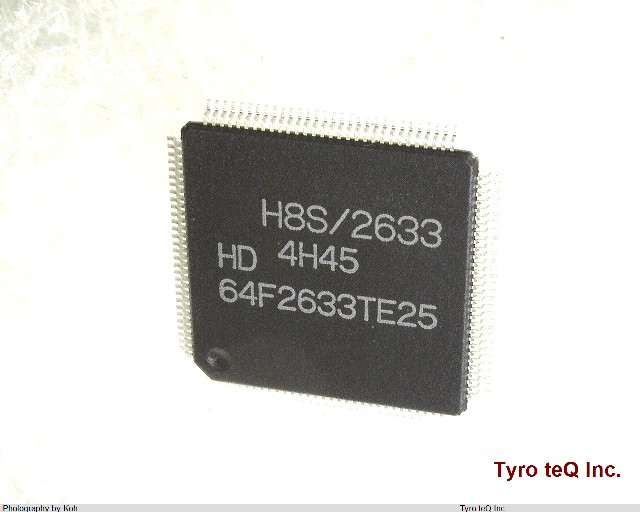

HD64F2633TE25 データシート

Name: HD64F2633TE25
Brand: RENESAS
SKU: 180006939-0000-0000-0000

HD64F2633TE25 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F2633TE25 の詳細情報

型番	HD64F2633TE25
メーカー	RENESAS
データシート
ADC Channels	YES
Address Bus Width	24
Bit Size	16
CPU Family	H8S/2600
Clock Frequency-Max	25 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G120
JESD-609 Code	e0
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	89
Number of Terminals	120
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	TQFP120,.64SQ,16
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3,5 V
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	25 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
