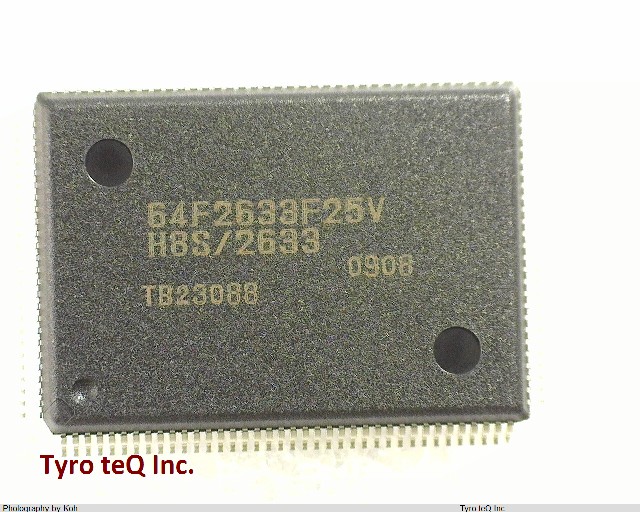

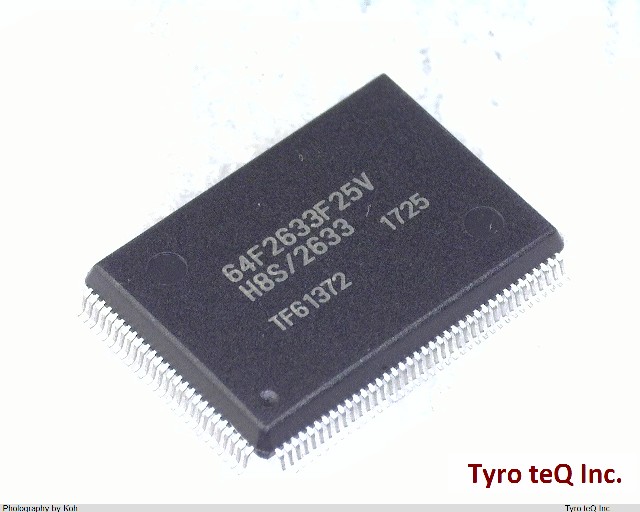

HD64F2633F25V データシート

Name: HD64F2633F25V
Brand: RENESAS
SKU: 180048708-0000-0000-0000

HD64F2633F25V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F2633F25V の詳細情報

型番	HD64F2633F25V
メーカー	RENESAS
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	16
Clock Frequency-Max	25 MHz
Connectivity	ACIA, I2C(2), IRDA, SCI(5), SMARTCARD, UART
D/A Converters	4-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	R-PQFP-G128
JESD-609 Code	e6
Length	20 mm
Moisture Sensitivity Level	3
Number of I/O Lines	89
Number of Terminals	128
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BUZZER, DMA(4), POR, PWM(4), TIMER(14), WDT(2)
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	3.15 mm
Speed	25 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
