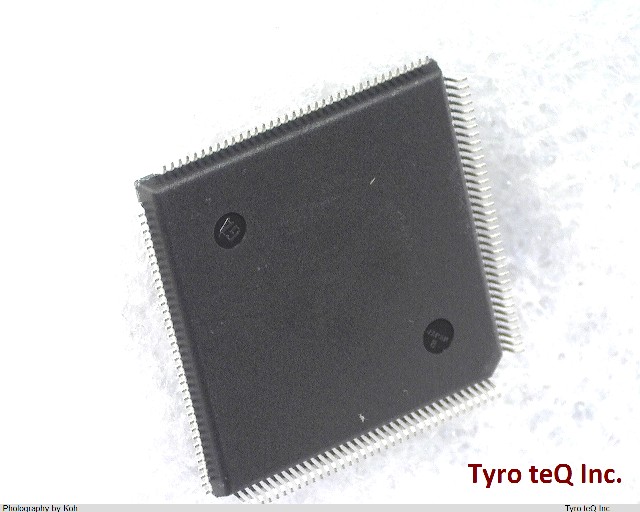

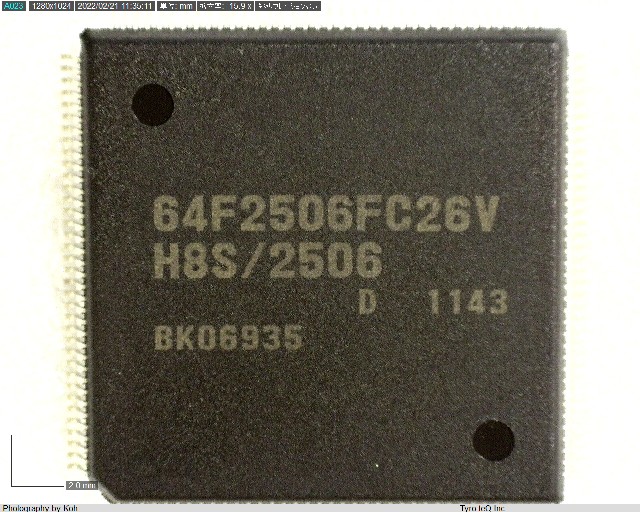

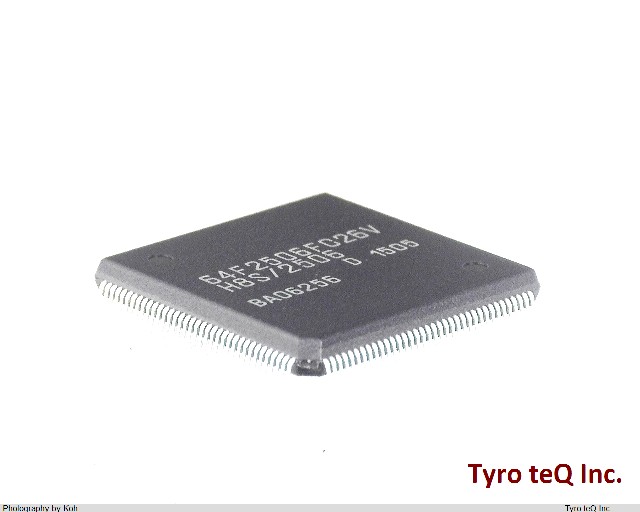

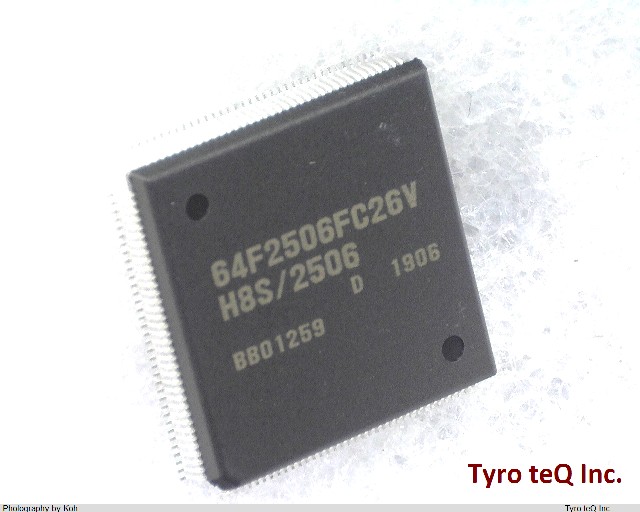

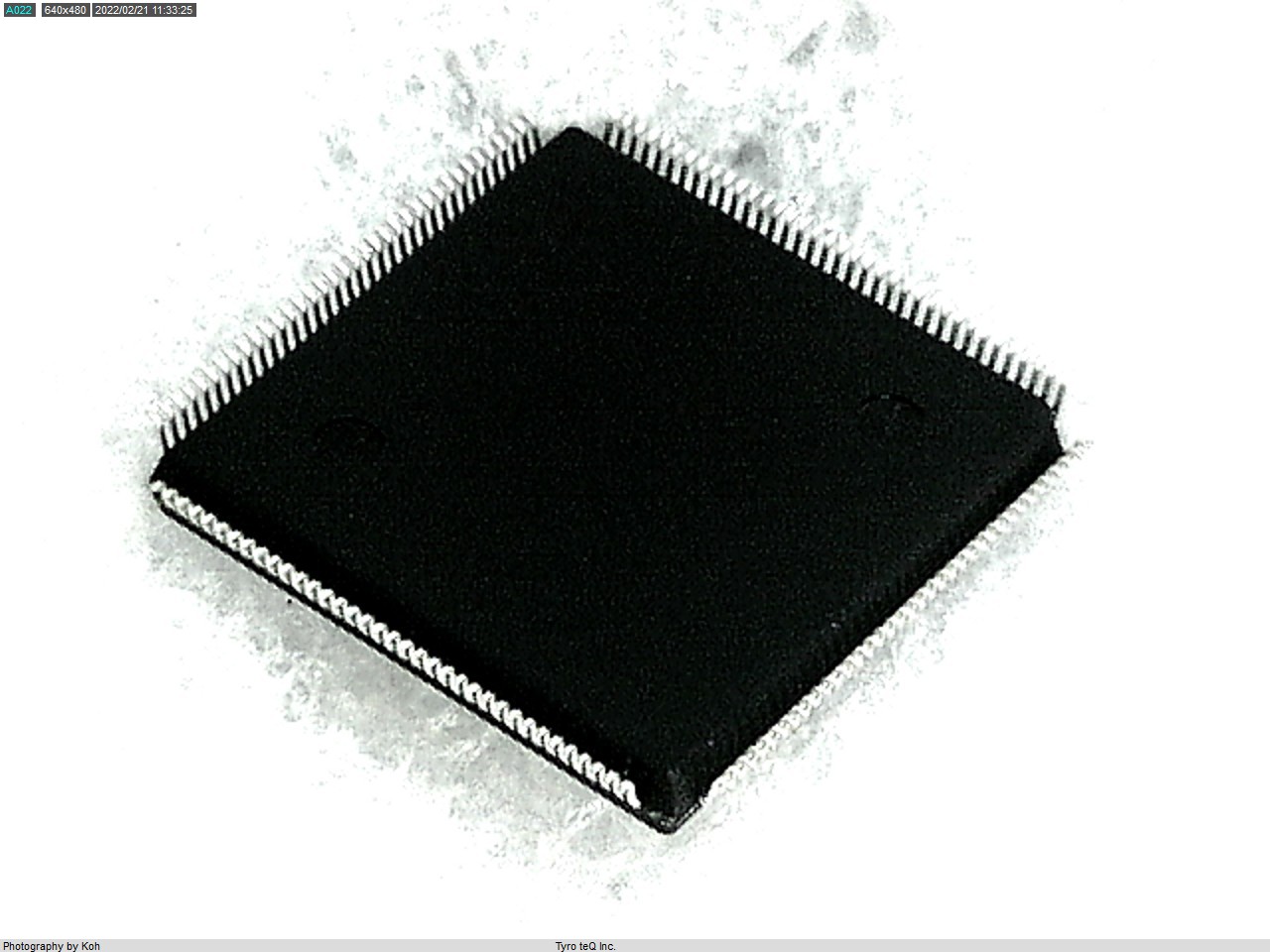

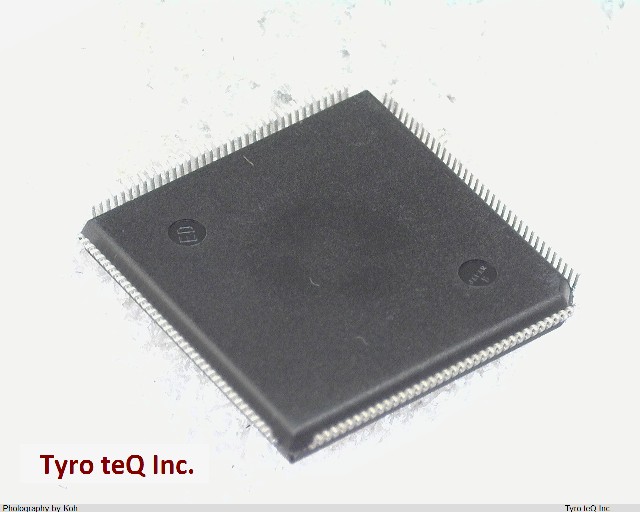

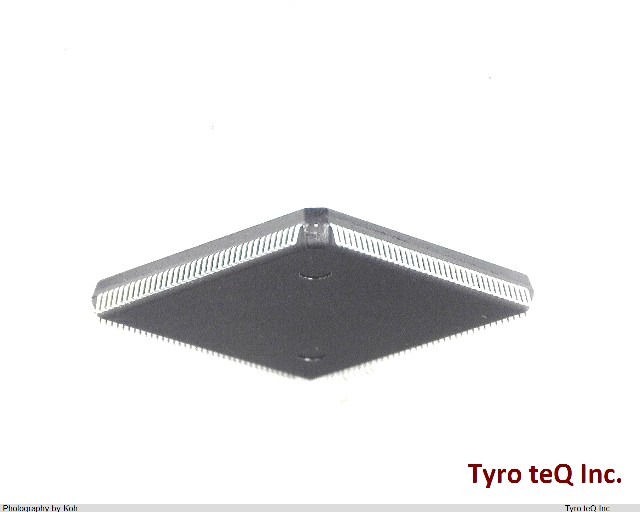

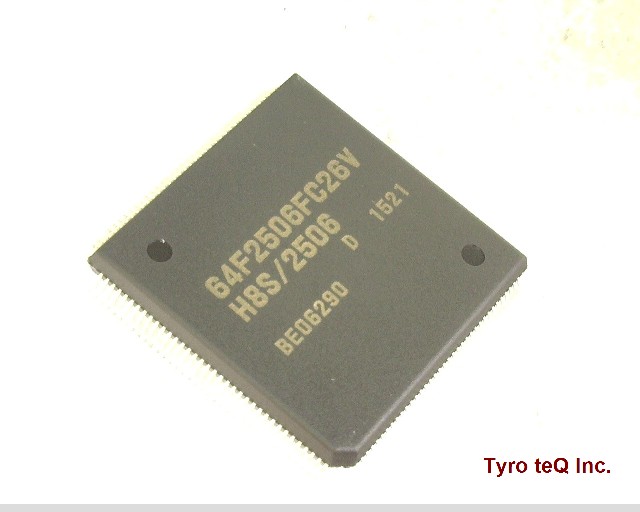

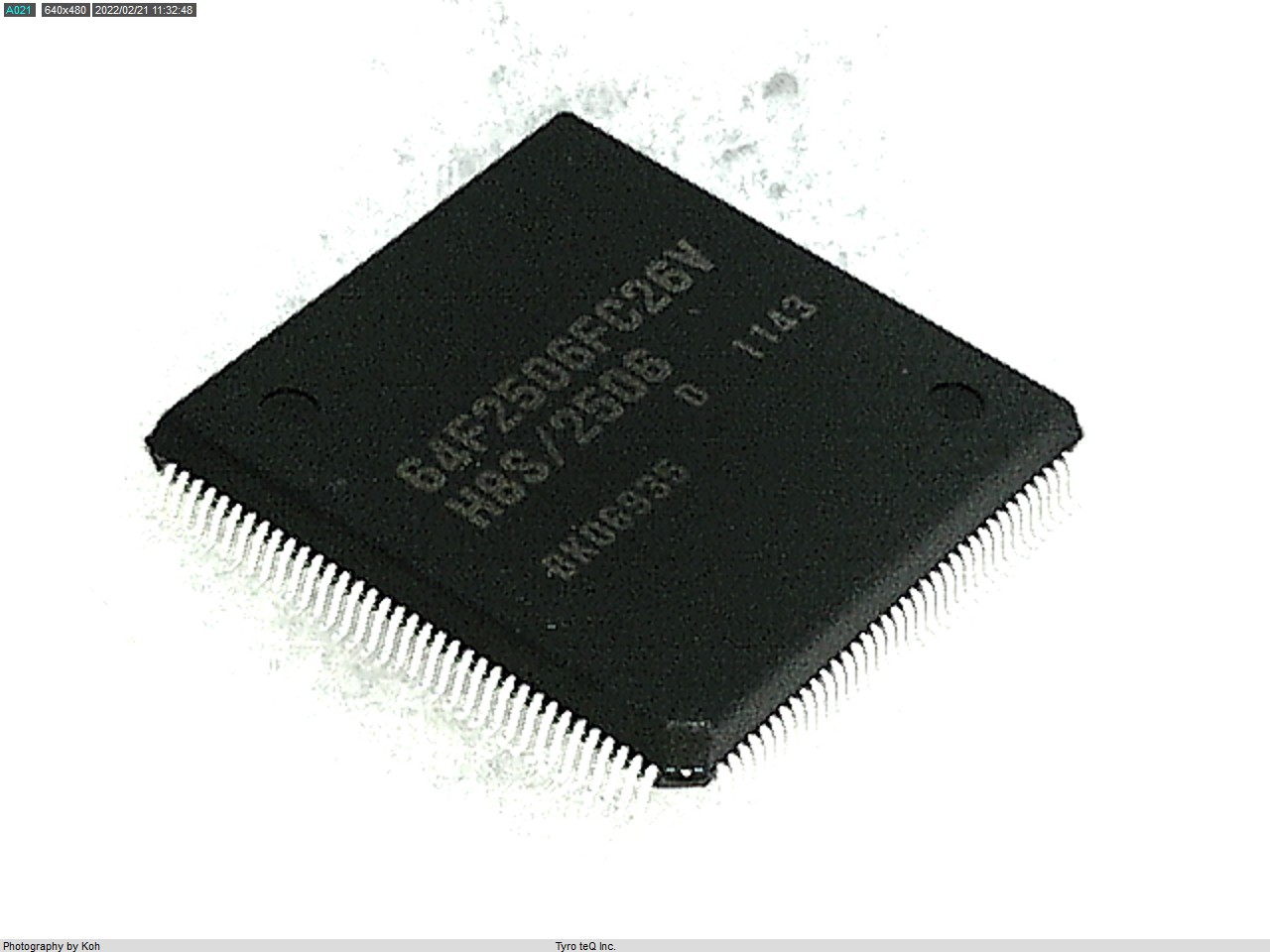

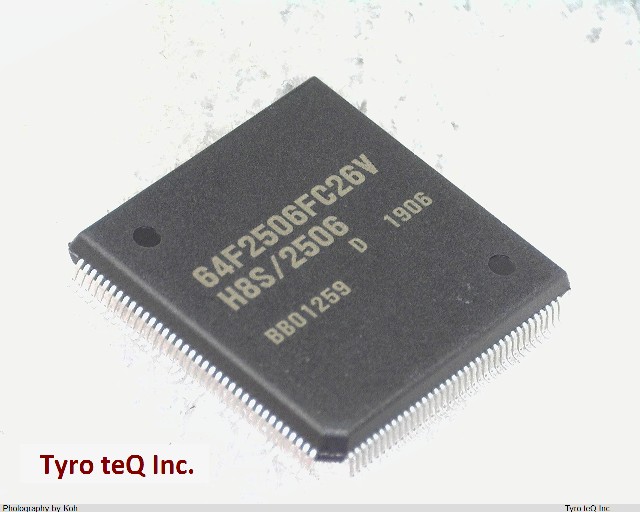

HD64F2506FC26DV

Name: HD64F2506FC26DV
Brand: RENESAS
SKU: 180149439-0000-0000-0000

HD64F2506FC26DV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F2506FC26DV の詳細情報

型番	HD64F2506FC26DV
メーカー	RENESAS
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATING AT -40C TO +85C TEMPERATURE FOR WIDER RANGE SPECIFICATIONS
Address Bus Width	24
Bit Size	16
Clock Frequency-Max	26 MHz
Connectivity	I2C(2), SCI(5)
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G144
Length	20 mm
Number of I/O Lines	104
Number of Terminals	144
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	PWM, RTC, TIMER(10), WDT(2)
RAM (bytes)	32768
ROM (words)	524288
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	26 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
