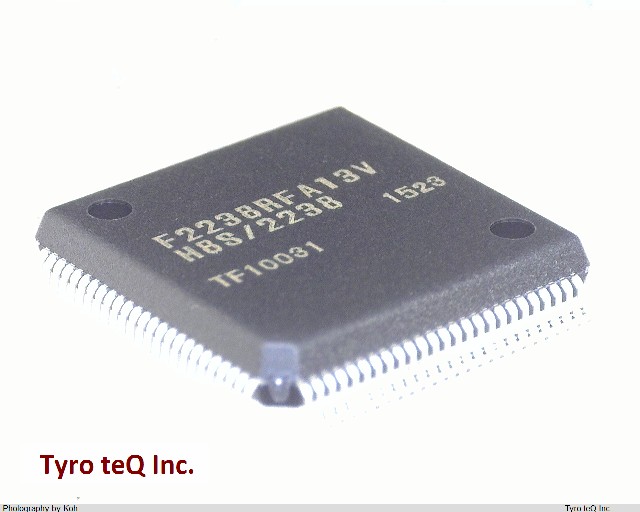

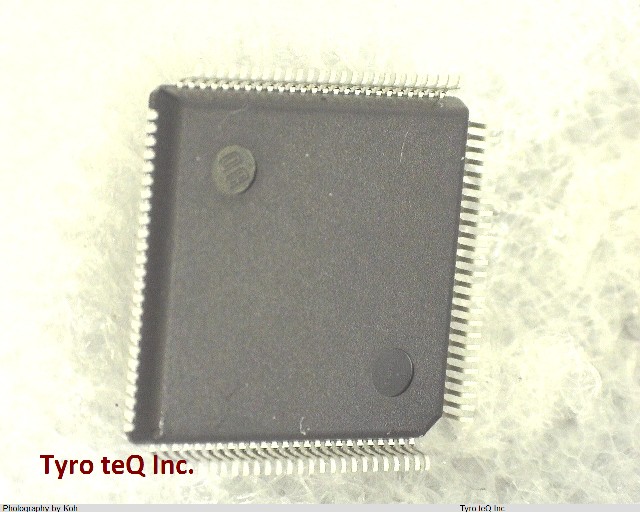

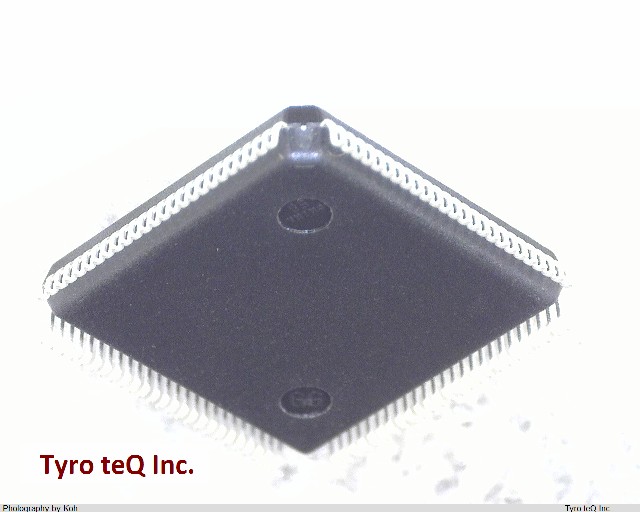

HD64F2238RFA13V データシート

Name: HD64F2238RFA13V
Brand: RENESAS
SKU: 180065704-0000-0000-0000

HD64F2238RFA13V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F2238RFA13V の詳細情報

型番	HD64F2238RFA13V
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	OPERATES AT 2.2V MINIMUM SUPPLY @ 6.25MHZ
Address Bus Width	24
Bit Size	16
CPU Family	H8S/2000
Clock Frequency-Max	13.5 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e4
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	82
Number of Terminals	100
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	13.5 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
