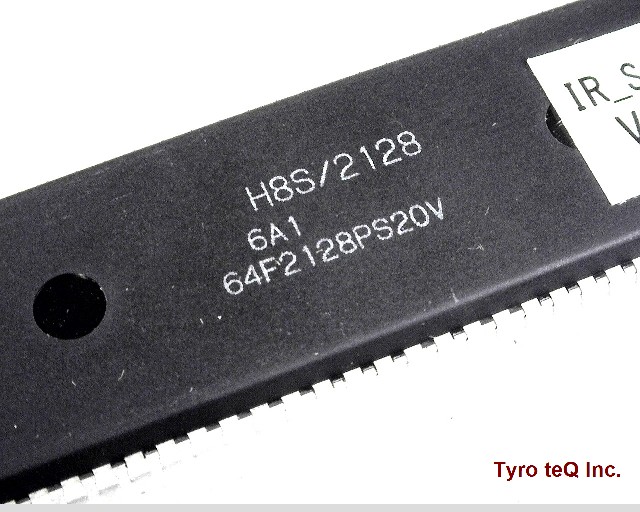

HD64F2128PS20V データシート

Name: HD64F2128PS20V
Brand: RENESAS
SKU: 180069369-0000-0000-0000

HD64F2128PS20V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64F2128PS20V の詳細情報

型番	HD64F2128PS20V
メーカー	RENESAS
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 4V SUPPLY
Address Bus Width	16
Bit Size	16
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e6
Length	57.6 mm
Moisture Sensitivity Level	1
Number of I/O Lines	51
Number of Terminals	64
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
ROM Programmability	FLASH
Seated Height-Max	5.08 mm
Speed	20 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	19.05 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
