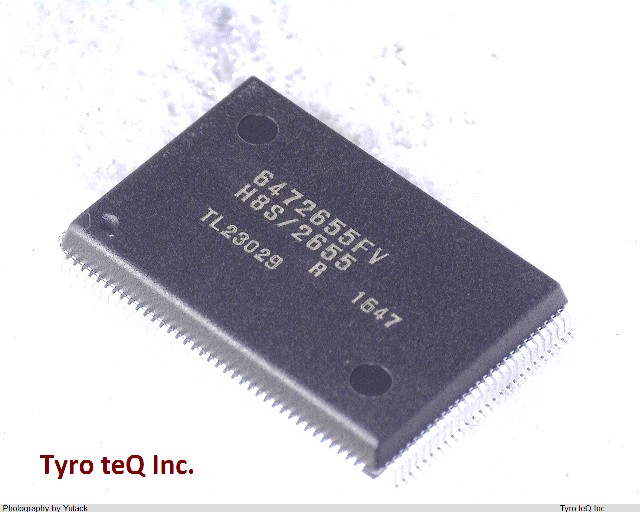

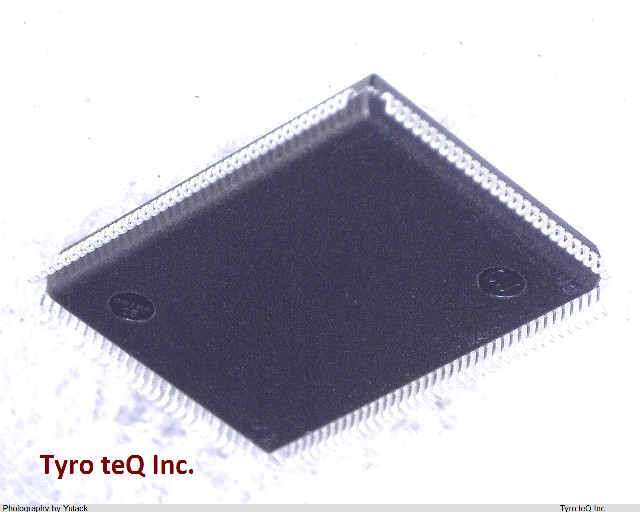

HD6472655RFV データシート

Name: HD6472655RFV
Brand: RENESAS
SKU: 180065695-0000-0000-0000

HD6472655RFV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD6472655RFV の詳細情報

型番	HD6472655RFV
メーカー	RENESAS
データシート
ADC Channels	YES
Address Bus Width	24
Bit Size	16
Clock Frequency-Max	20 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	R-PQFP-G128
Length	20 mm
Number of I/O Lines	95
Number of Terminals	128
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Shape	RECTANGULAR
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
ROM Programmability	OTPROM
Seated Height-Max	3.15 mm
Speed	20 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
