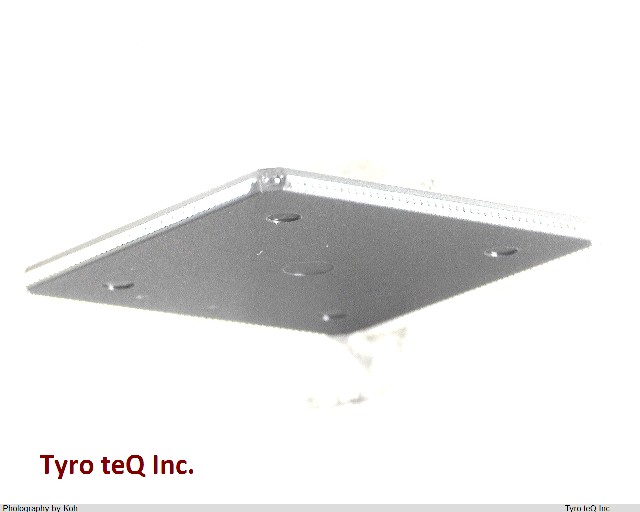

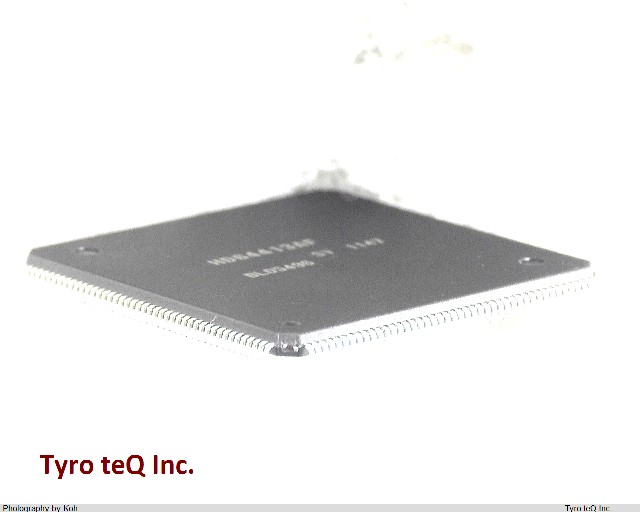

HD64413ASFV データシート

Name: HD64413ASFV
Brand: RENESAS
SKU: 180058827-0000-0000-0000

HD64413ASFV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD64413ASFV の詳細情報

型番	HD64413ASFV
メーカー	RENESAS
データシート
Clock Frequency-Max	66.66 MHz
External Data Bus Width	16
JESD-30 Code	S-PQFP-G176
JESD-609 Code	e6
Length	24 mm
Maximum Num of Bits per Pixel	16
Moisture Sensitivity Level	3
Number of Terminals	176
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.7 mm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	24 mm
uPs/uCs/Peripheral ICs Type	GRAPHICS PROCESSOR
