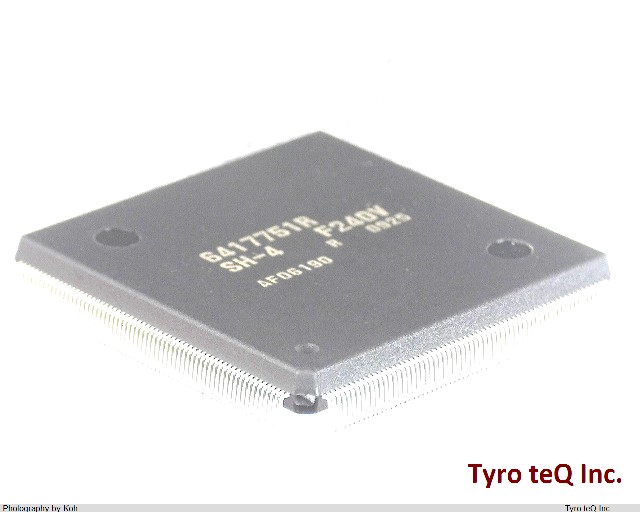

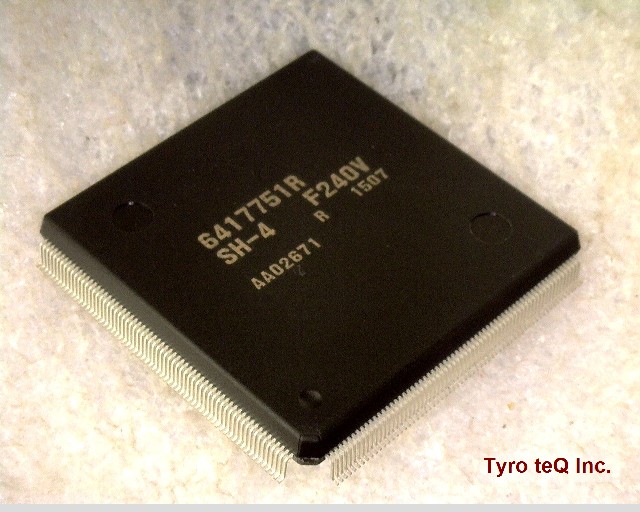

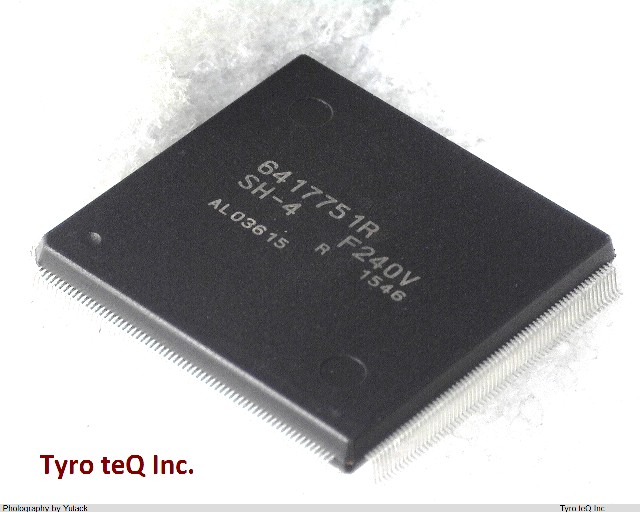

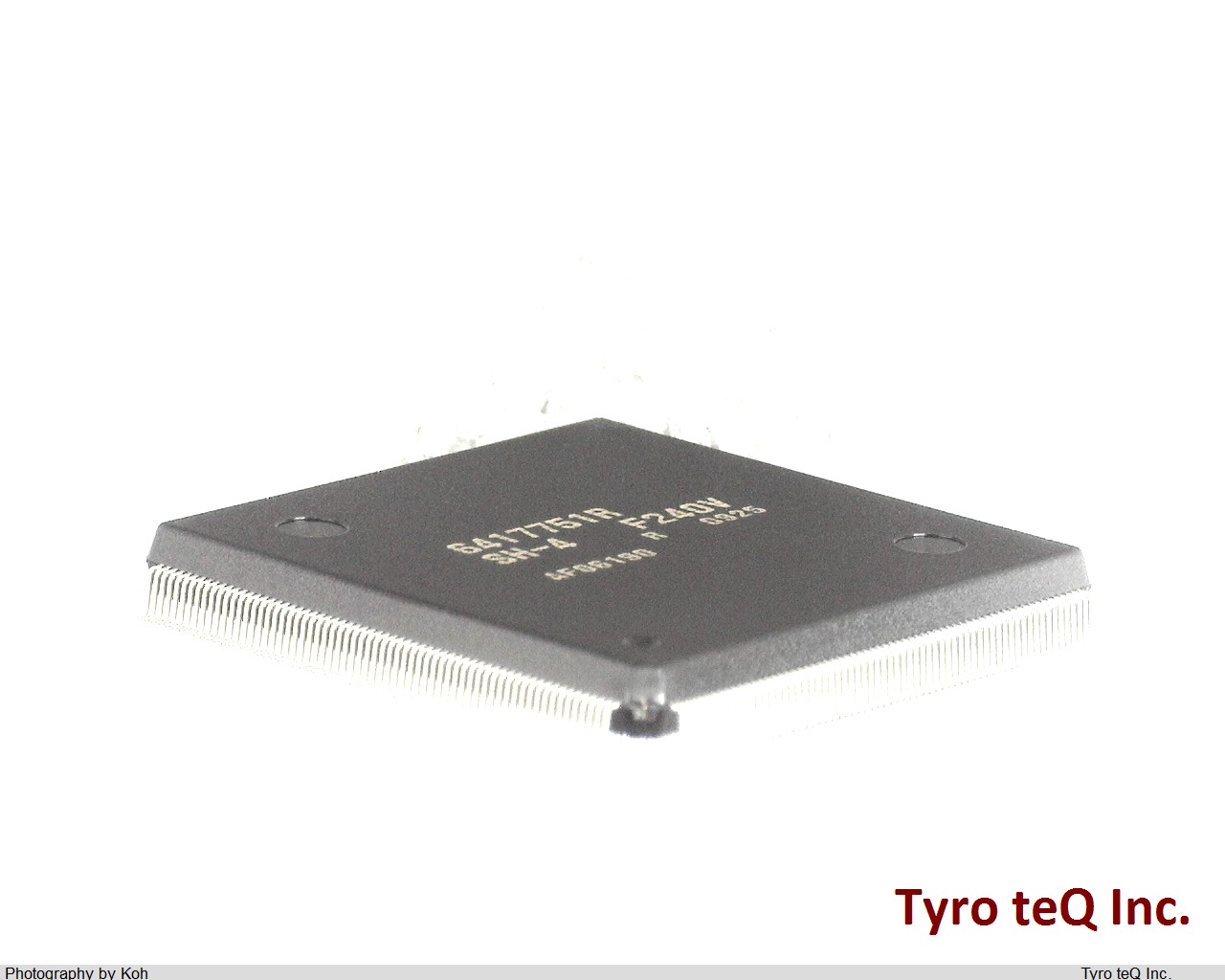

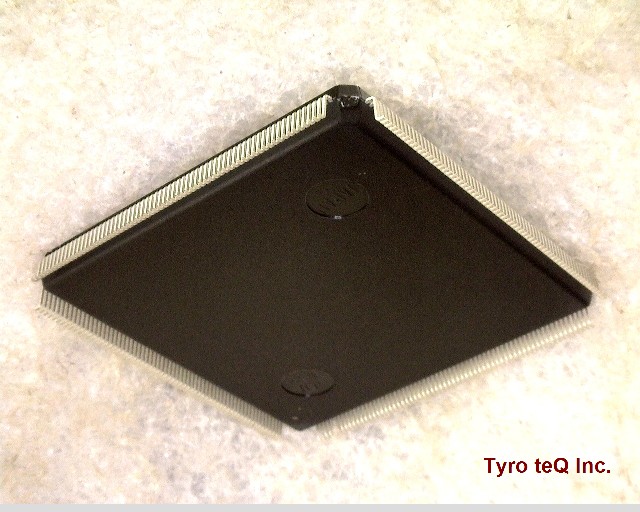

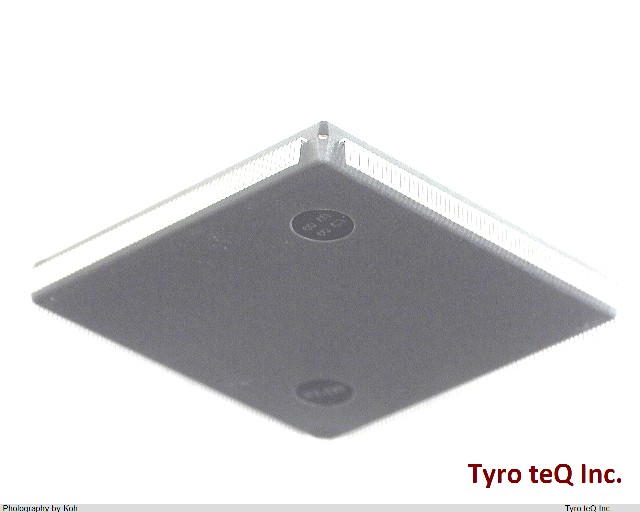

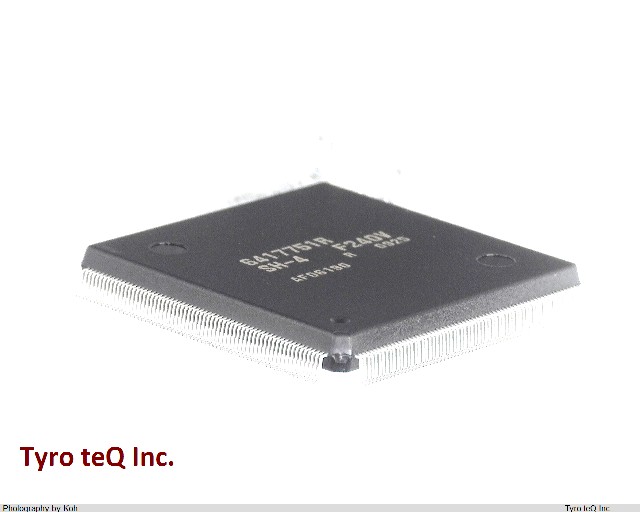

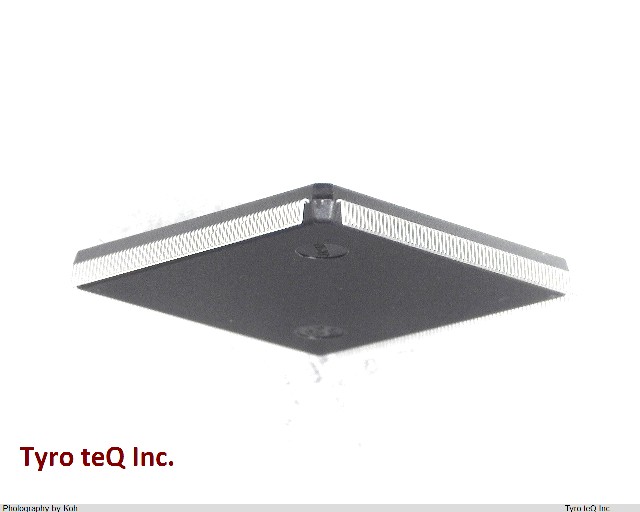

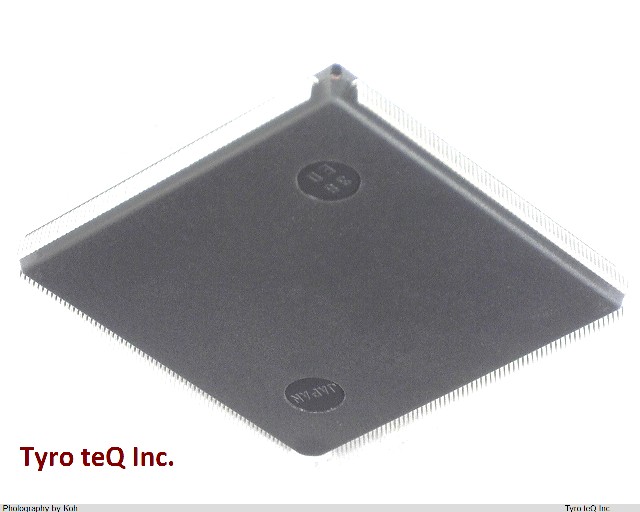

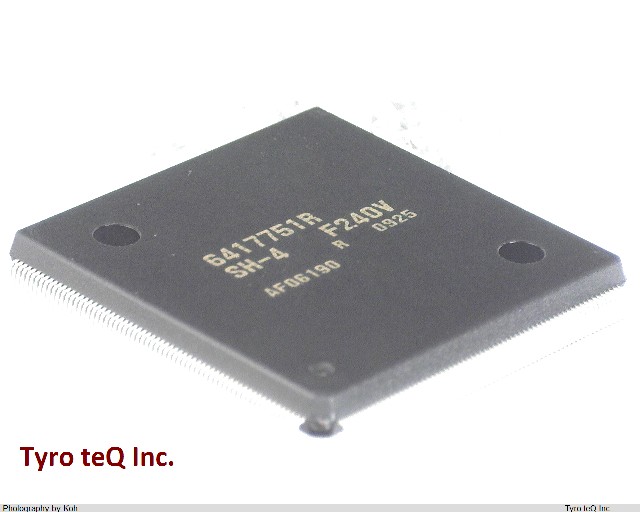

HD6417751RF240V データシート

Name: HD6417751RF240V
Brand: RENESAS
SKU: 180048736-0000-0000-0000

HD6417751RF240V - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD6417751RF240V の詳細情報

型番	HD6417751RF240V
メーカー	RENESAS
データシート
Address Bus Width	26
Bit Size	32
Boundary Scan	YES
Clock Frequency-Max	34 MHz
External Data Bus Width	32
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G256
JESD-609 Code	e6
Length	28 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Terminals	256
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	3.95 mm
Speed	240 rpm
Supply Voltage-Max	1.6 V
Supply Voltage-Min	1.4 V
Supply Voltage-Nom	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	28 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
