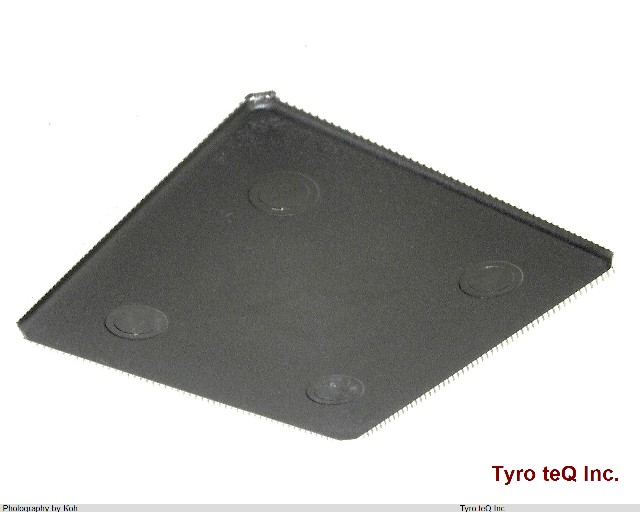

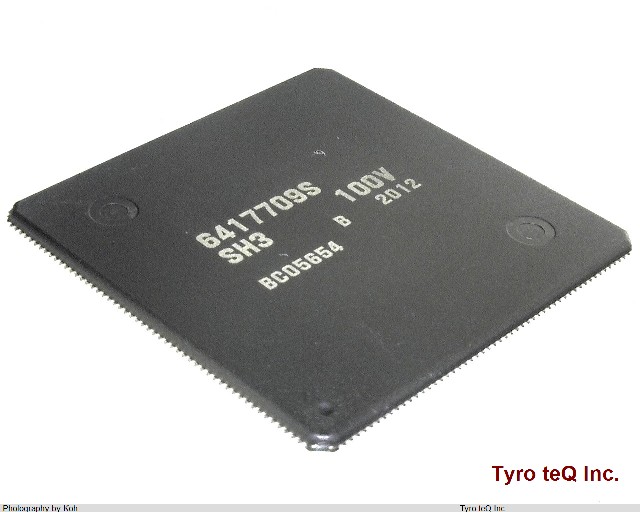

HD6417709SF100BV データシート

Name: HD6417709SF100BV
Brand: RENESAS
SKU: 180058785-0000-0000-0000

HD6417709SF100BV - RENESAS の商品詳細ページです。

No Image

２営業日以内に回答いたします

HD6417709SF100BV の詳細情報

型番	HD6417709SF100BV
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Address Bus Width	26
Bit Size	32
Clock Frequency-Max	20 MHz
DAC Channels	YES
DMA Channels	NO
External Data Bus Width	16
JESD-30 Code	S-PQFP-G208
JESD-609 Code	e6
Length	28 mm
Moisture Sensitivity Level	3
Number of I/O Lines	81
Number of Terminals	208
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	20 rpm
Supply Voltage-Max	1.95 V
Supply Voltage-Min	1.55 V
Supply Voltage-Nom	1.7 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	28 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
